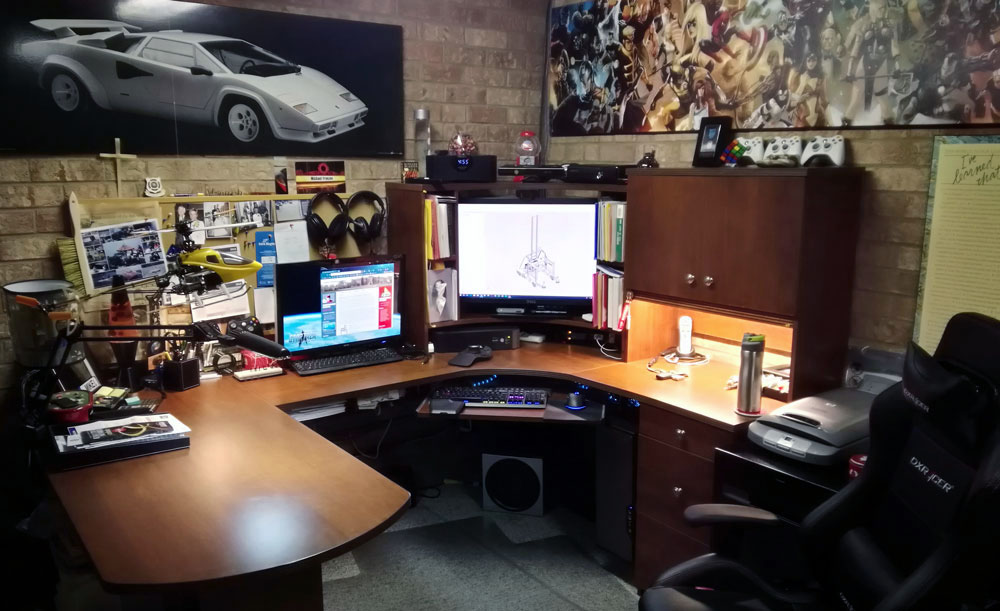

Mr. F home office area

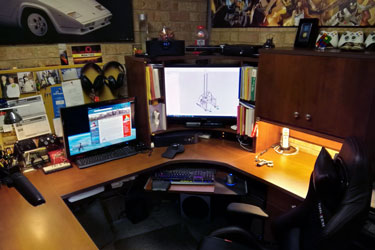

Mr. Franzen's home office area

I am always working on a project, some big, others small. Here are just a few I have done in the past that you may find interesting to check out.

Gallery Quick Links Contents, Click to Jump to the Specific Album!

Index
  1. i7 Computer Workstation Rebuild
  2. Poker Table and Chairs
  3. White Box Server
  4. Work Bench Design and Build

Tip Use blue UP arrow - TOP - to come back up to top of this page for easy quick navigation.


- TOP - i7 Computer Workstation Rebuild

Now that my Quad core workstation is getting old in the teeth and my personal school workstation motherboard stopped working, I used the case and power supply to rebuild and update, but ended up having to update the power supply as my old 650 did not have enough power. The following are the details for the new Haswell-E workstation build:

  • Intel Core i7-5960X 3.0GHz 8-Core Processor
  • Asus X99-DELUXE/U3.1 ATX LGA2011-3 with G.Skill Ripjaws 4 series 32GB (4 x 8GB) DDR4-2800 RAM memory
  • cooled by Noctua NH-D14 SE2011 CPU Cooler
  • MSI GeForce GTX 980 Ti 6GB Video Card
  • Samsung 950 PRO 512GB M.2-2280 Solid State Drive
  • Samsung 850 EVO 2TB 2.5" Solid State Drive
  • Antec P182 Atx Black Mid Tower Case
  • 4 Noctua NF-S12A PWM & FLX type case fans
  • Corsair AX860i 860W 80+
  • LG G-H20L-S10 Black DVD+RW
  • Multi-Function Media Dashboard Front Panel All-in-one
  • Corsair K70 RGB Keyboard, and a ROCCAT TYON Wired Laser mouse
  • Belkin Backup and surge protection
  • SpaceMouse Pro Wireless
i7 Computer Workstation Rebuild Pictures

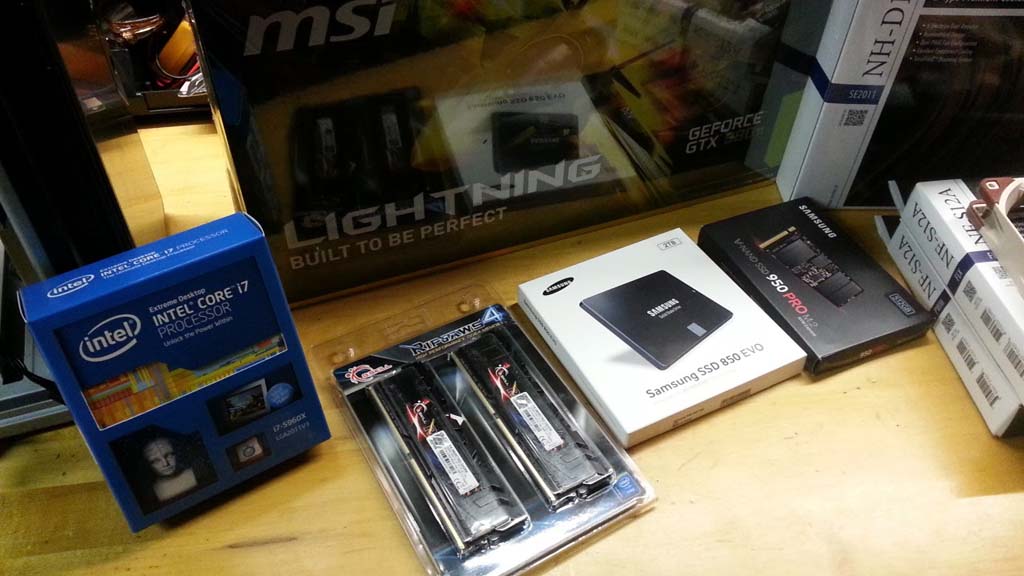

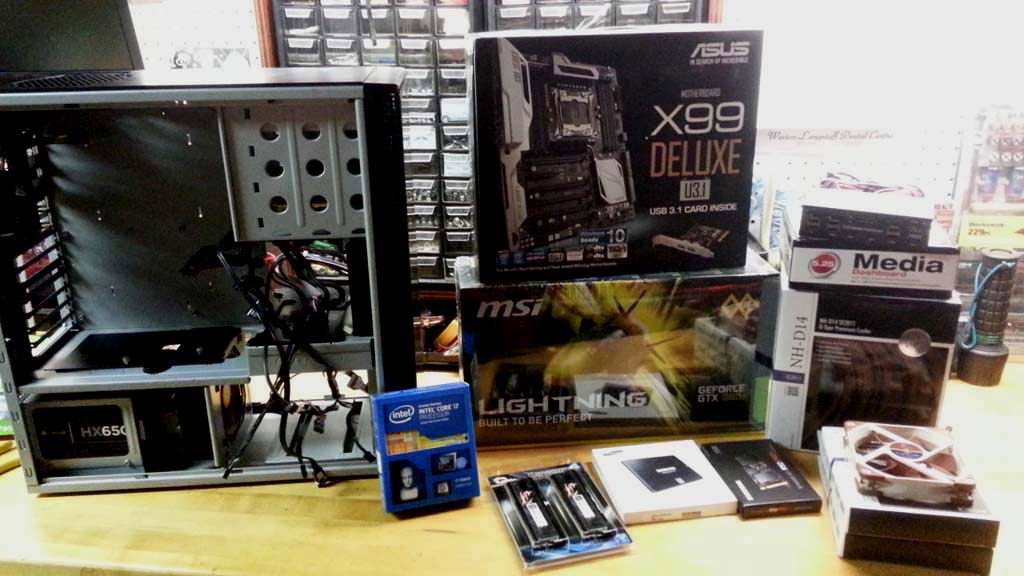

Parts

Parts close

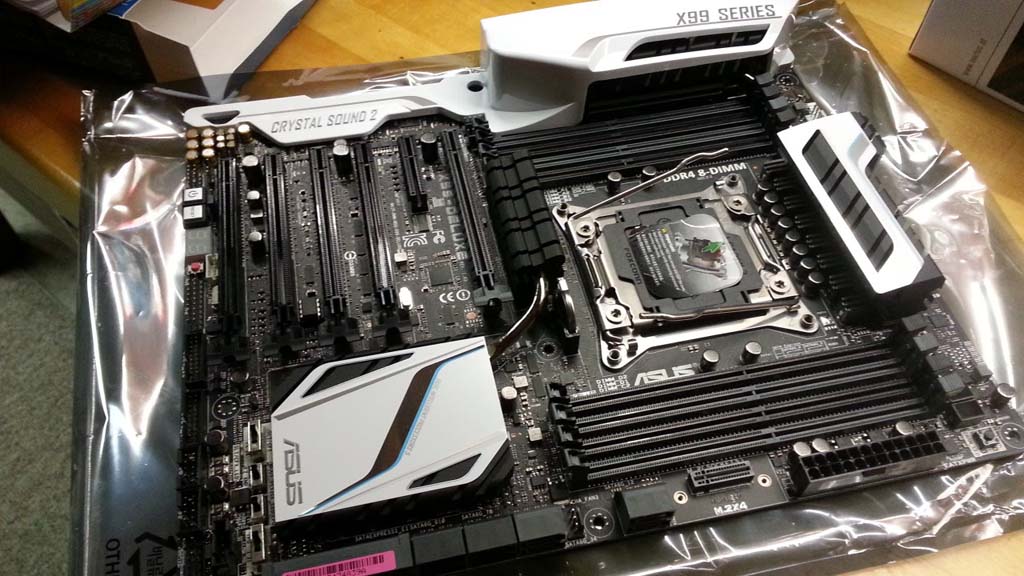

Motherboard

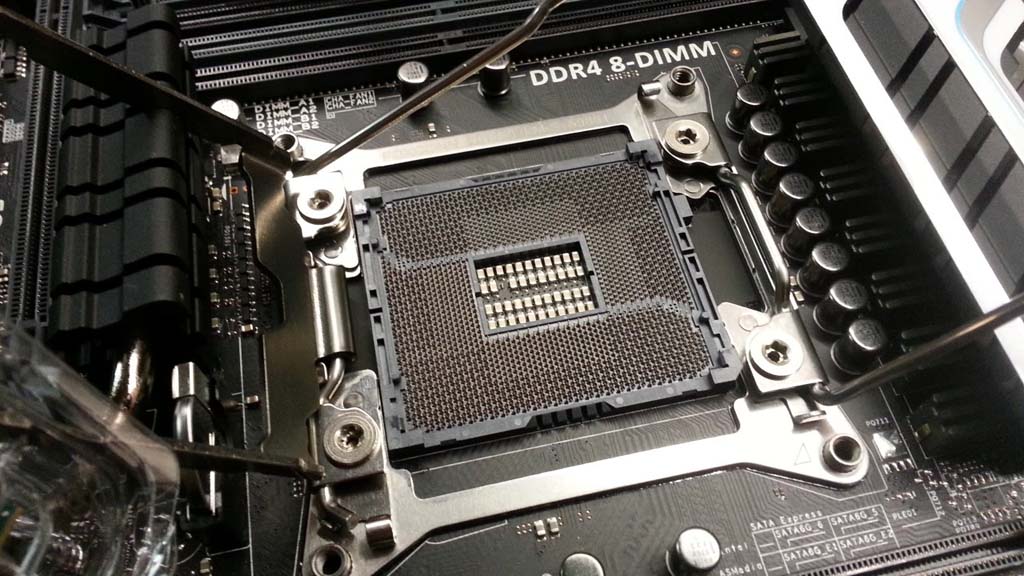

CPU Holder

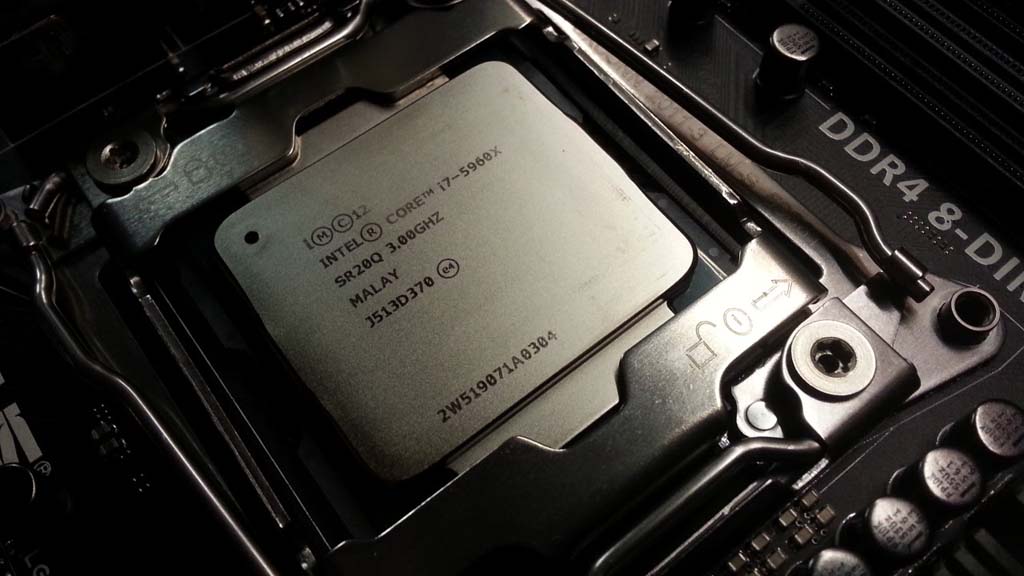

CPU

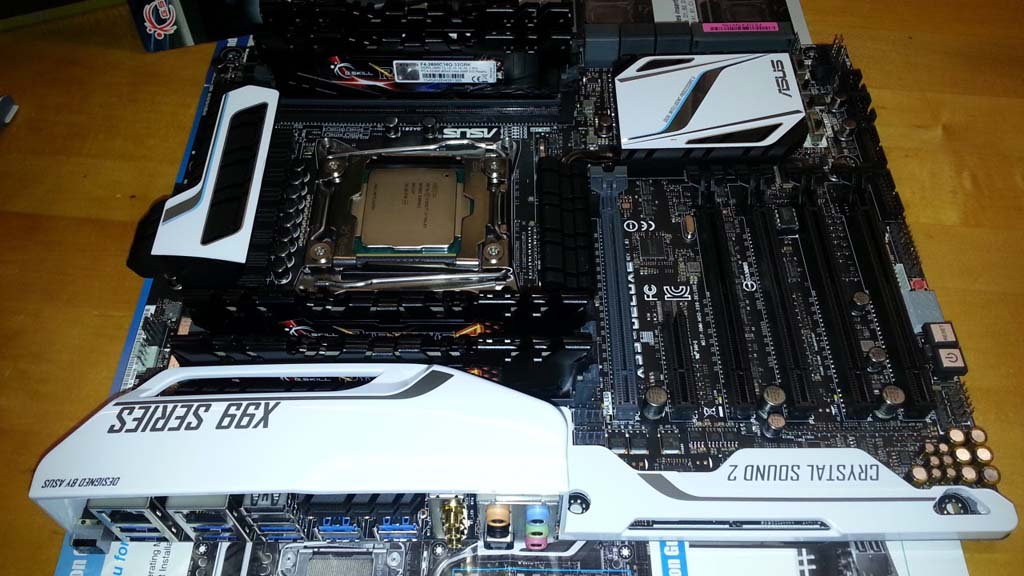

Motherboard

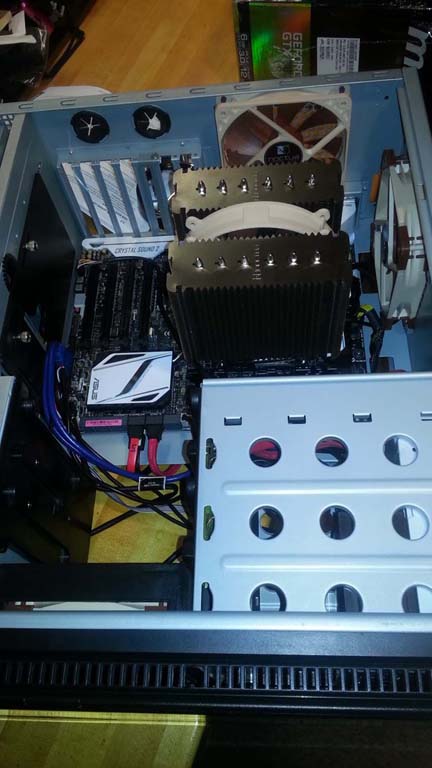

Coming together

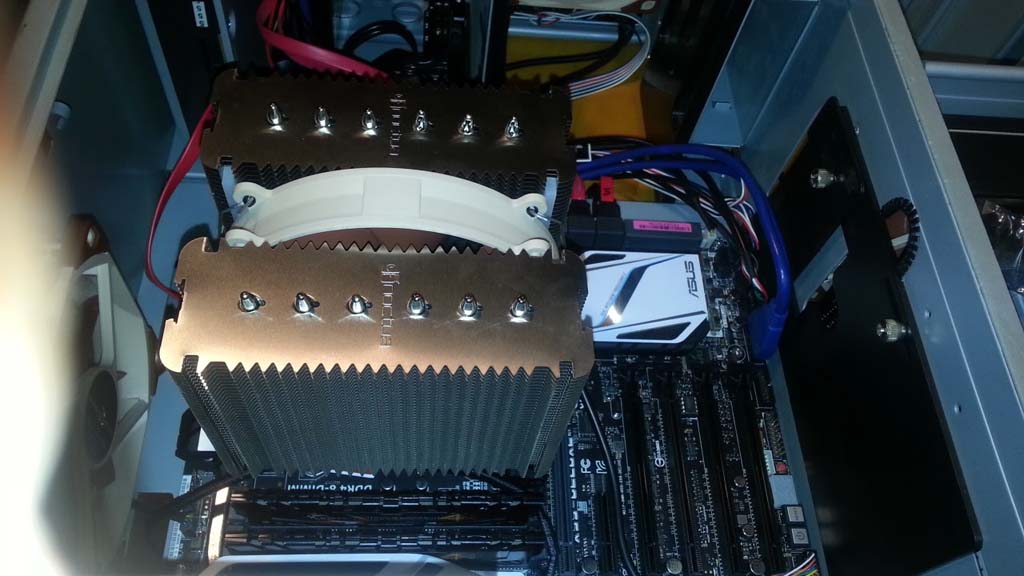

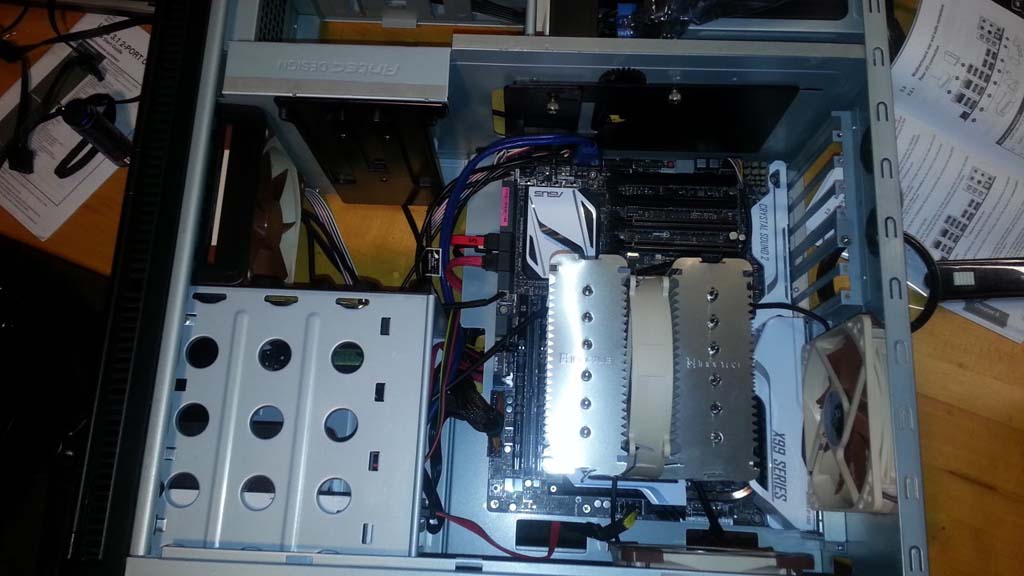

CPU Cooler

CPU Cooler

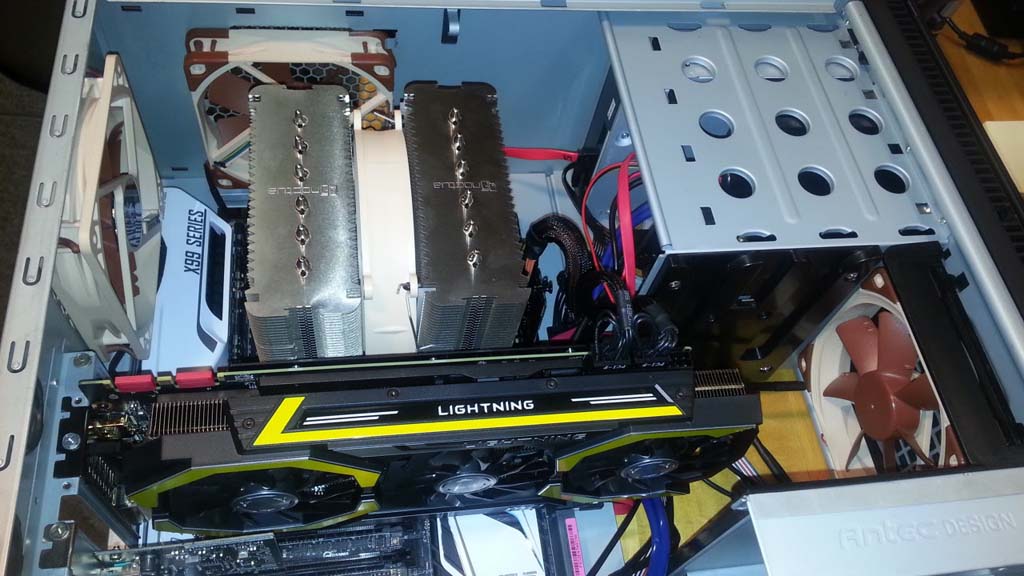

Graphics Card

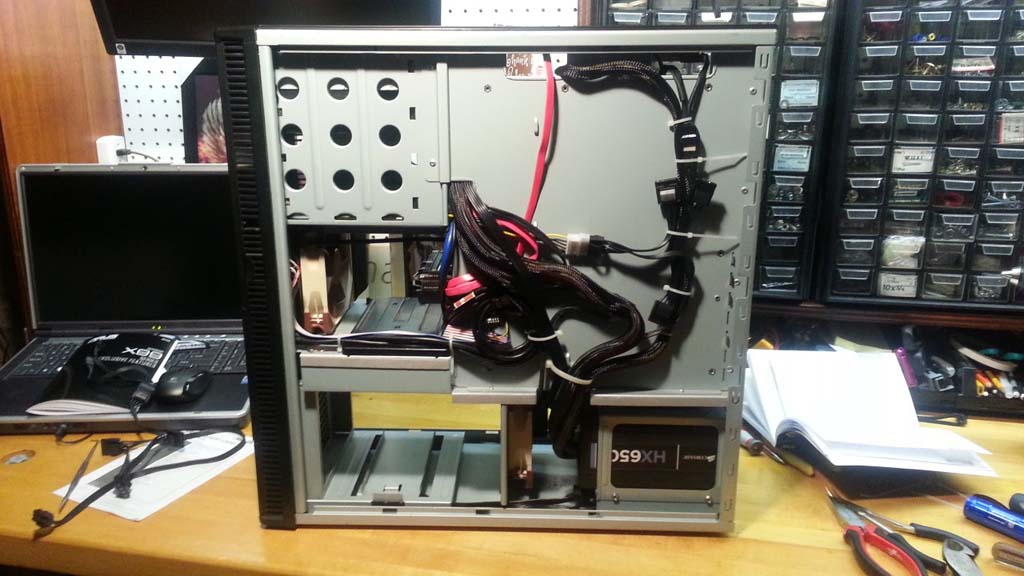

Cables back

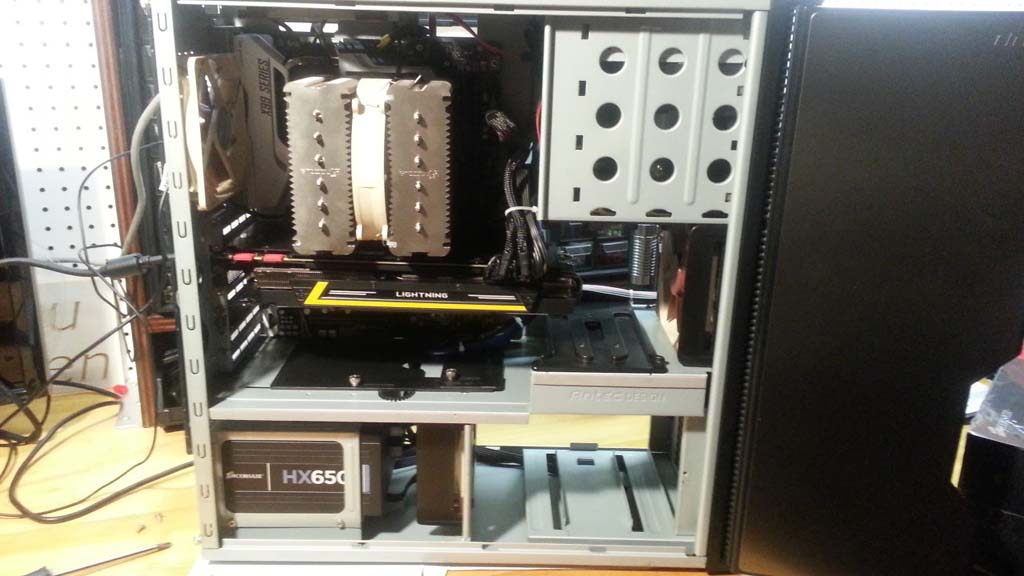

Built

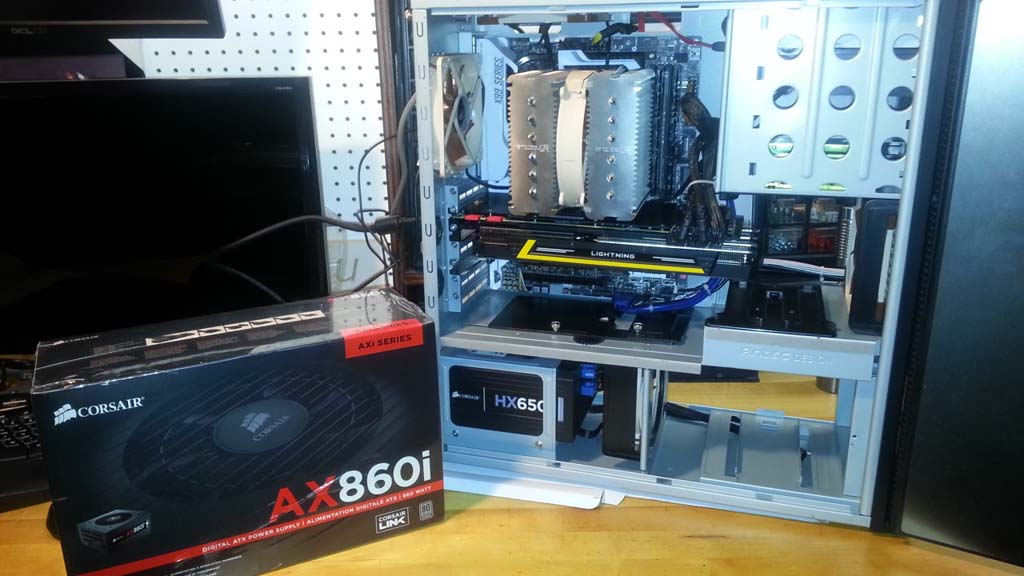

Pwr sup update

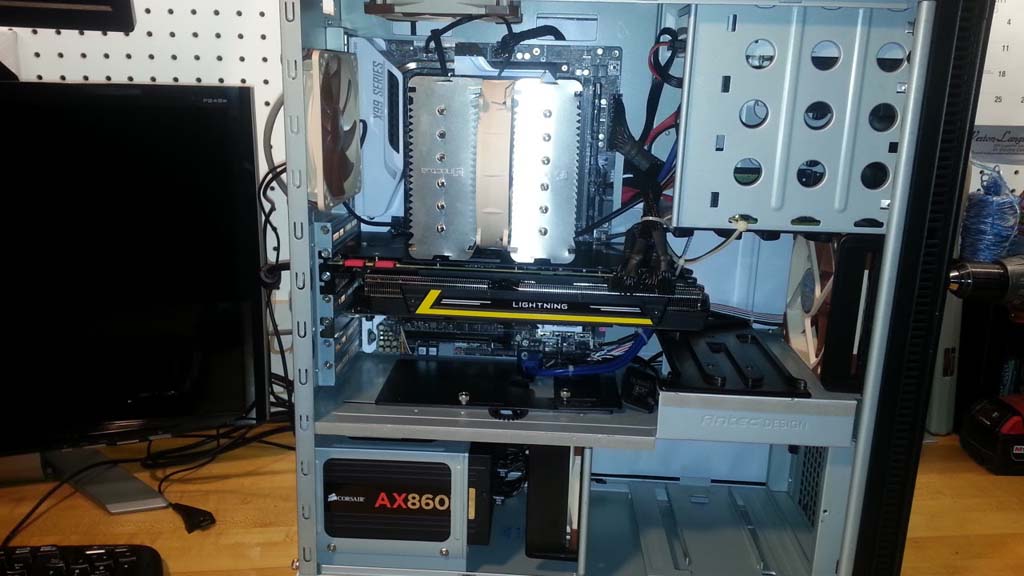

Pwr sup installed

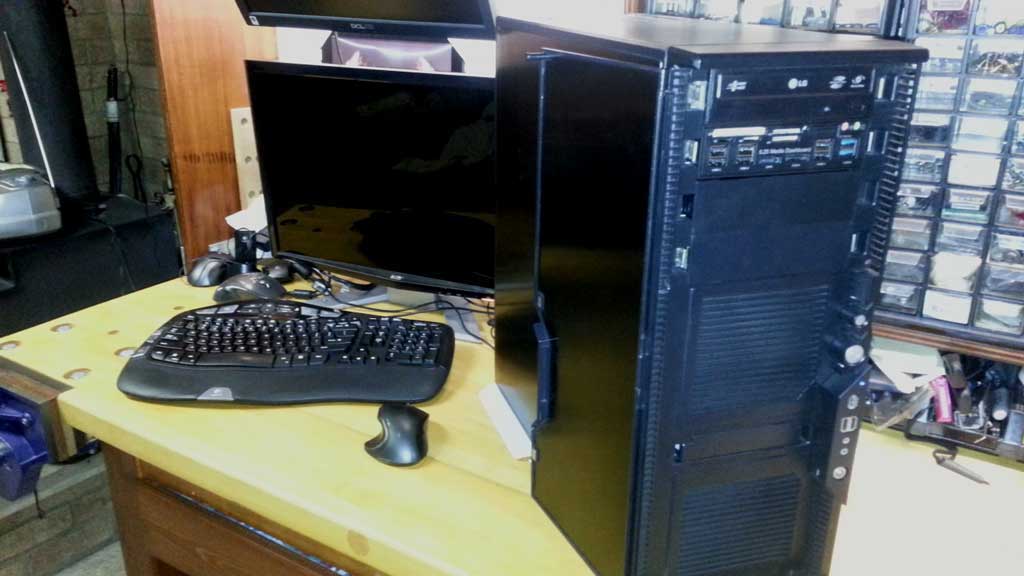

All together




- TOP - Poker Table

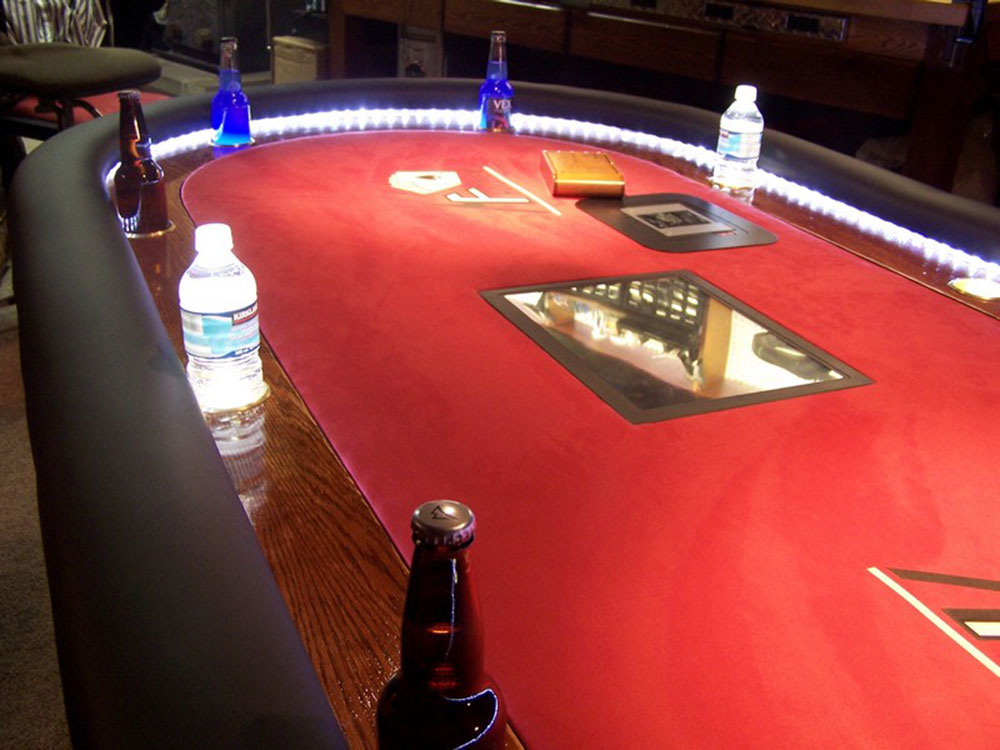

Another summer project, starting with some old chairs which were restored and re-apolstered A common design was used starting with standard 4*8 plywood, stain, and clear coat. The mechanical shuffler, by Shuffle tech was built into the table along with a flat touch screen monitor. Rope LED lights were mounted under padded wrist rest, while LED disks were put in cup holders to provide indirect lighting. I designed the logo and had it screen printed on the custom material I picked up from a local fabric store. The material was used for both the top and the chairs. Tournament Director software run on a near-by computer with a customized layout template for easy view from all directions and built-in speakers for audio cues from game software during play. It continues to be a popular table to play on as it has all the bells and whistles which make it a joy to play on.

Poker Table Build and Chair Restoration

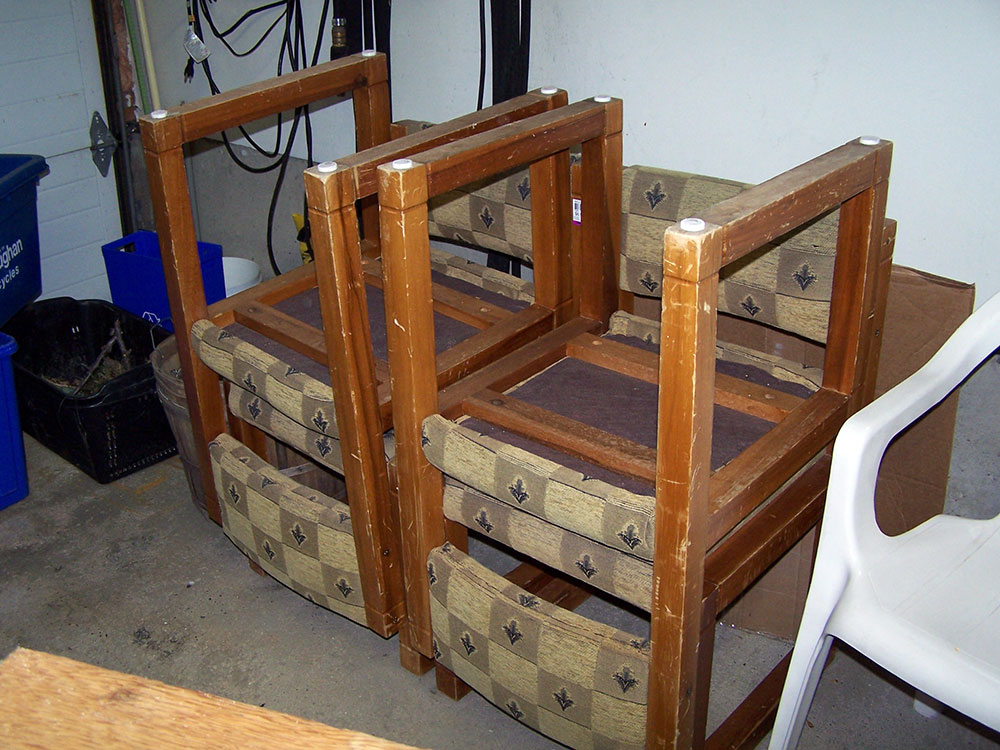

Old Chairs

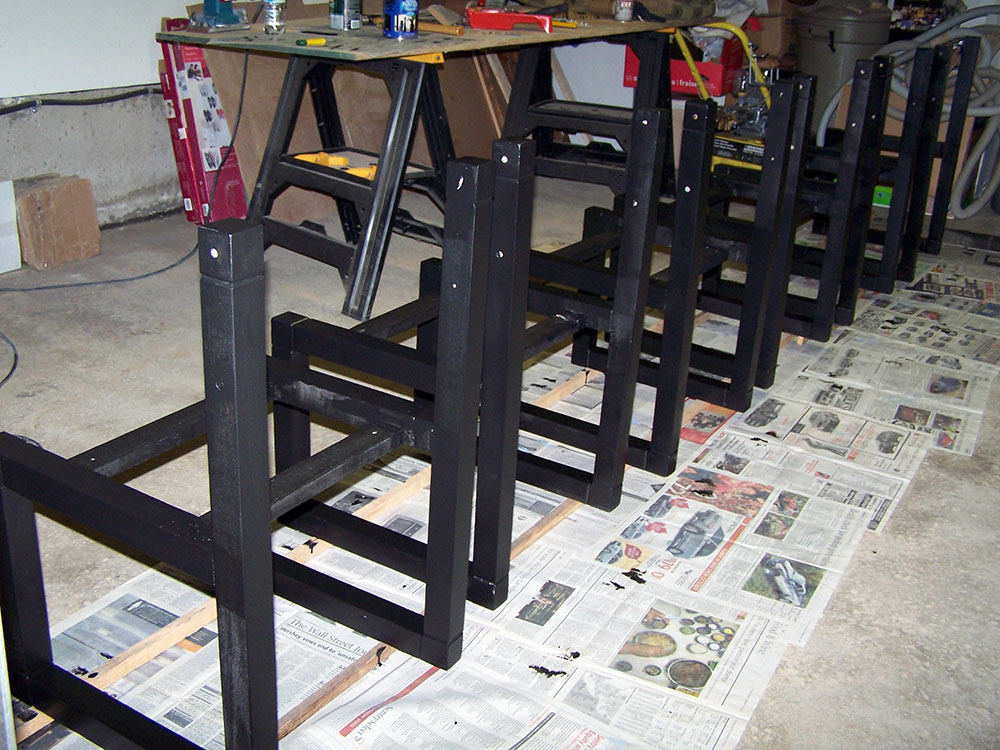

Primer

Painted

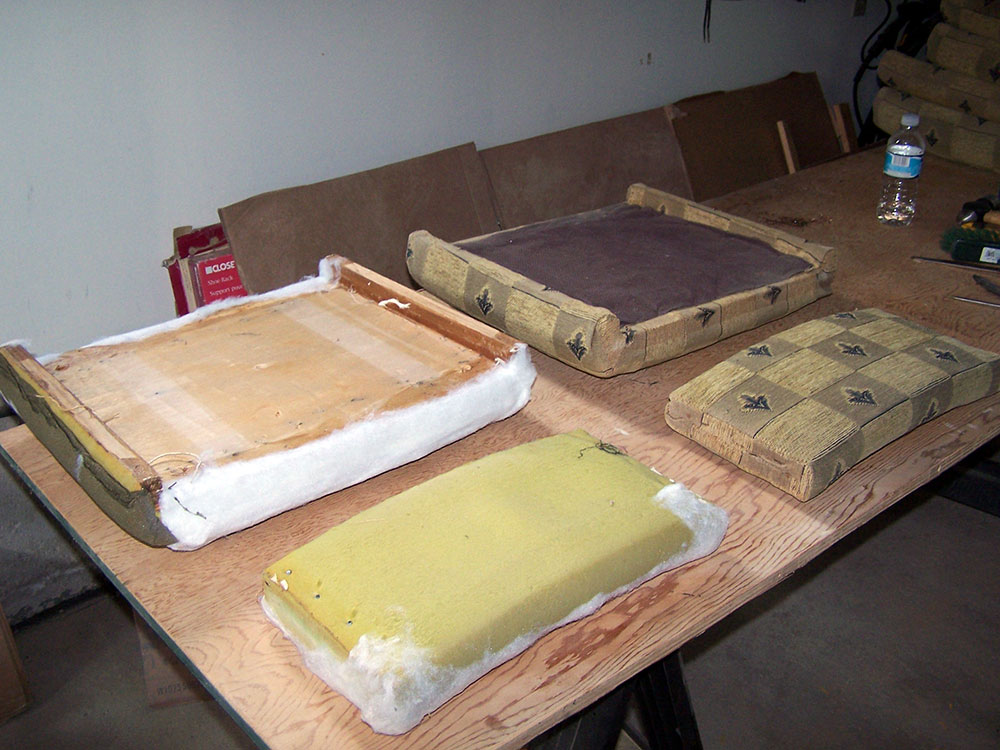

Remove Covers

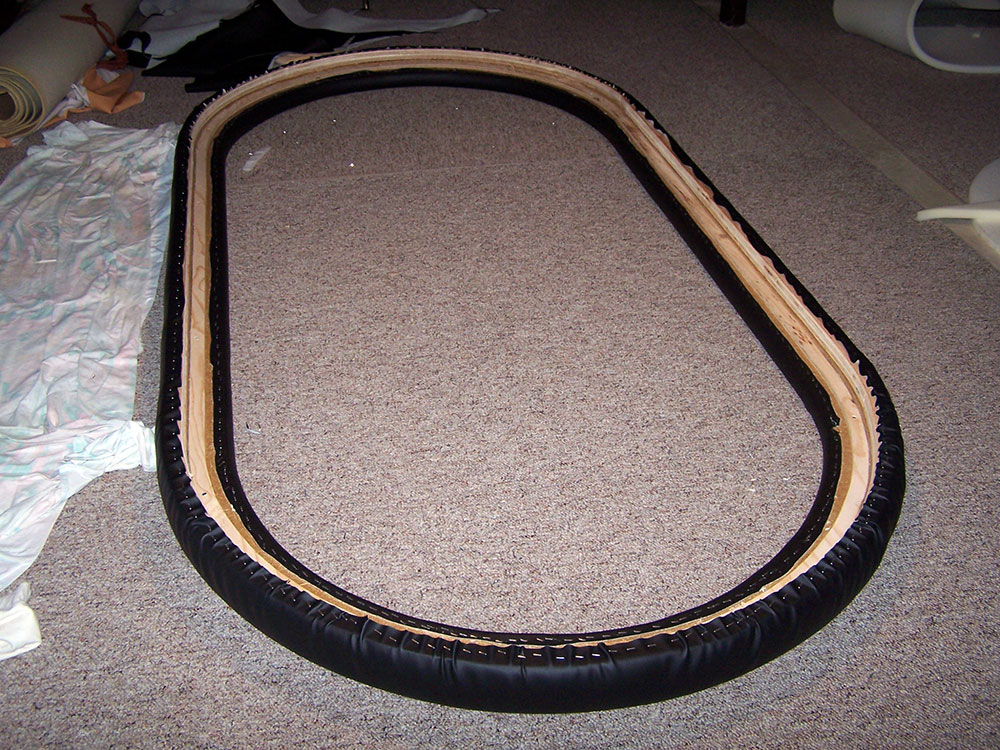

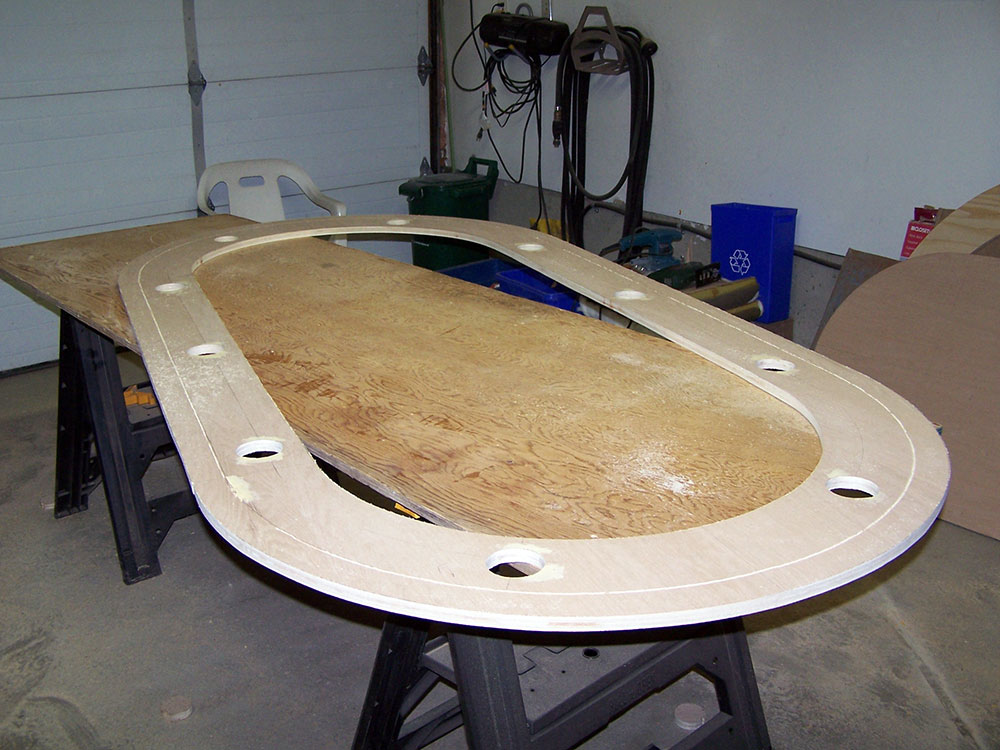

Race Track




Centre Piece

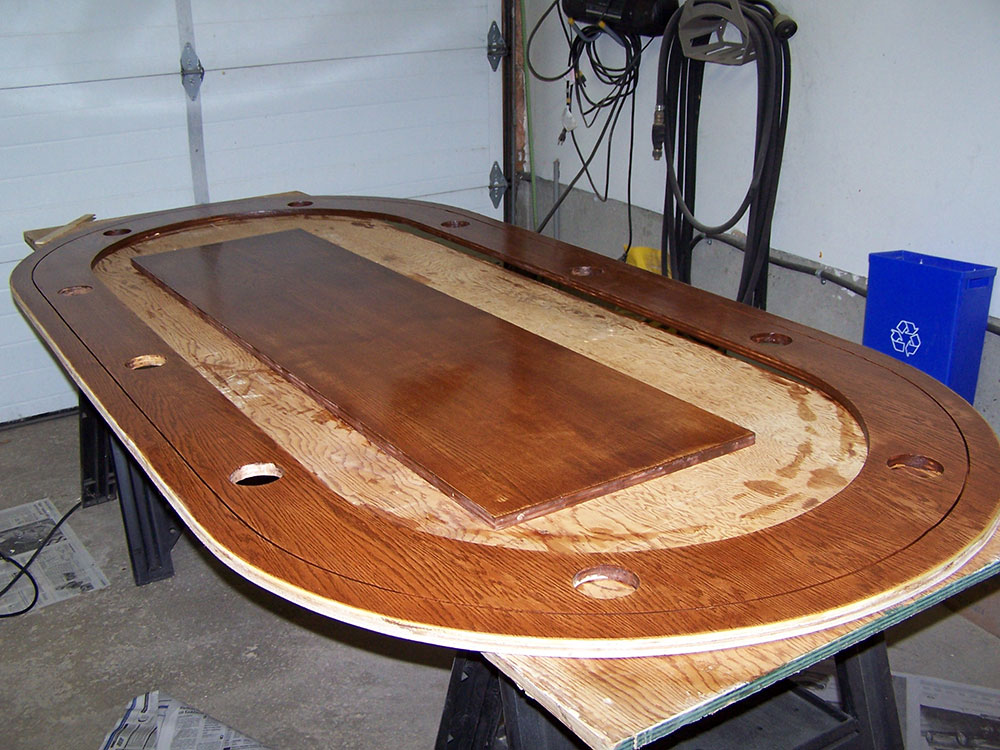

Staining

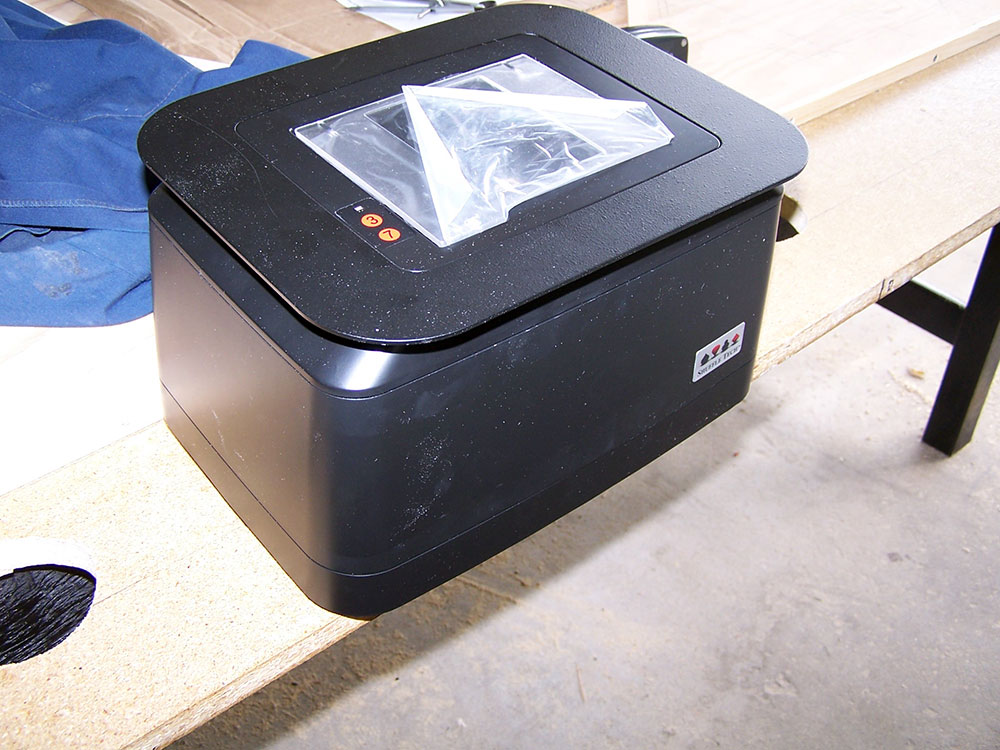

Shuffler

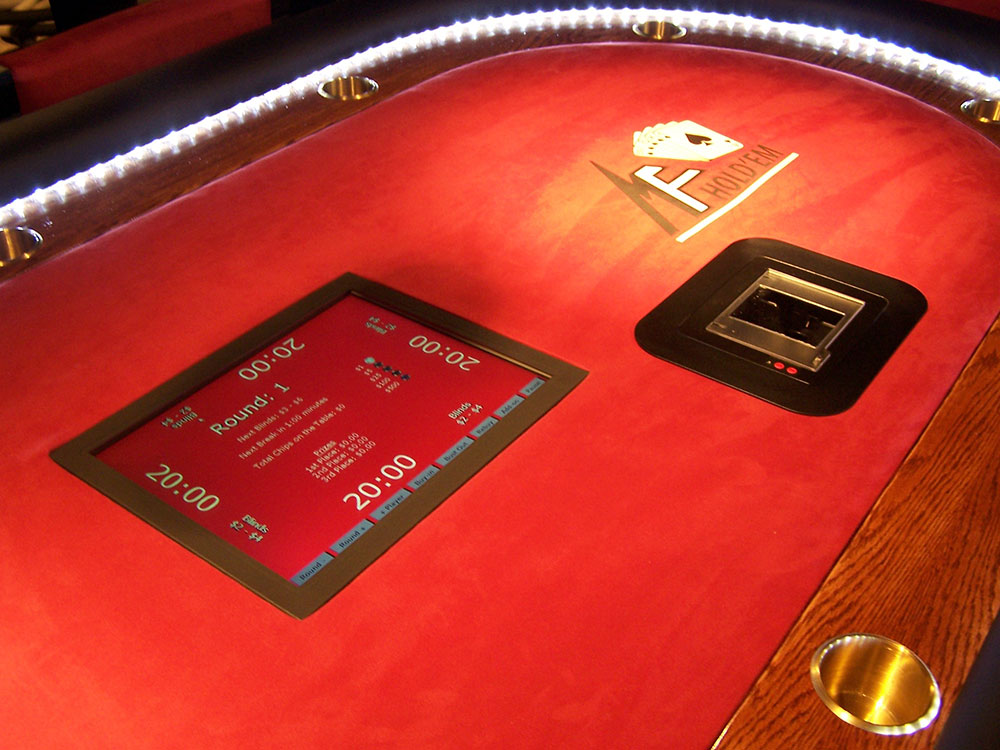

Monitor/Shuffler

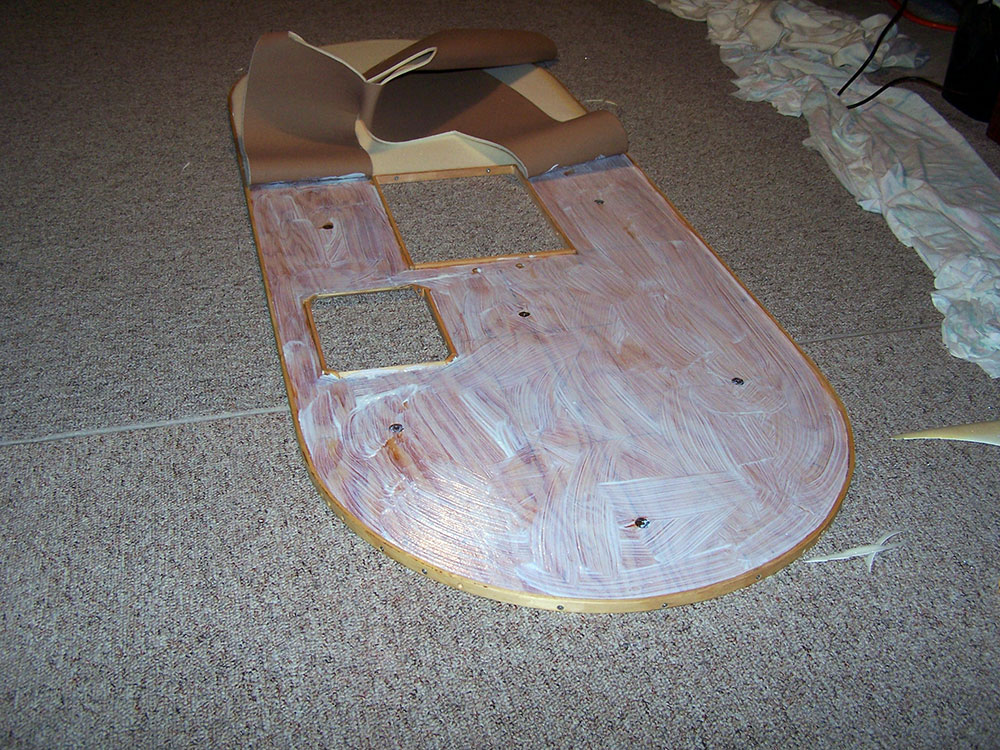

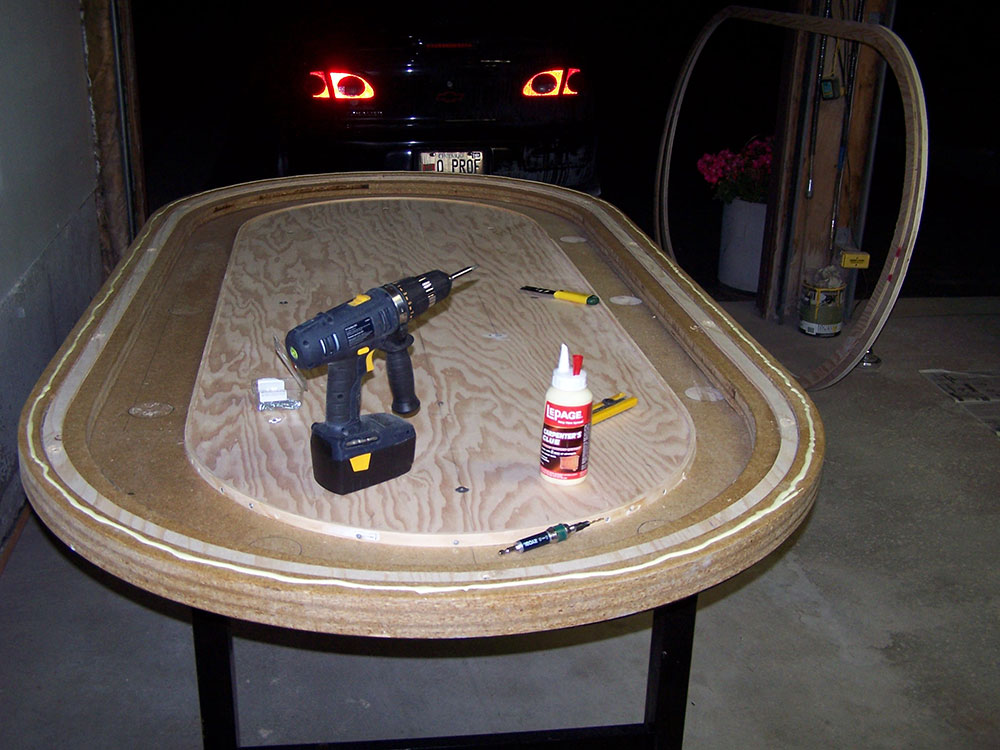

Top

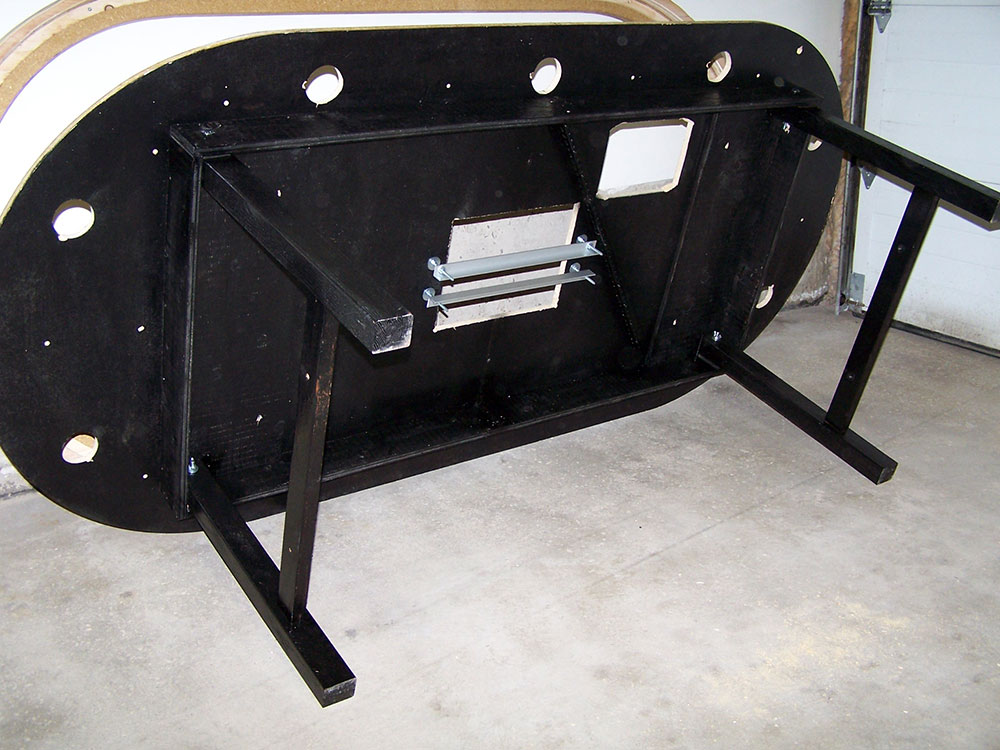

Bottom

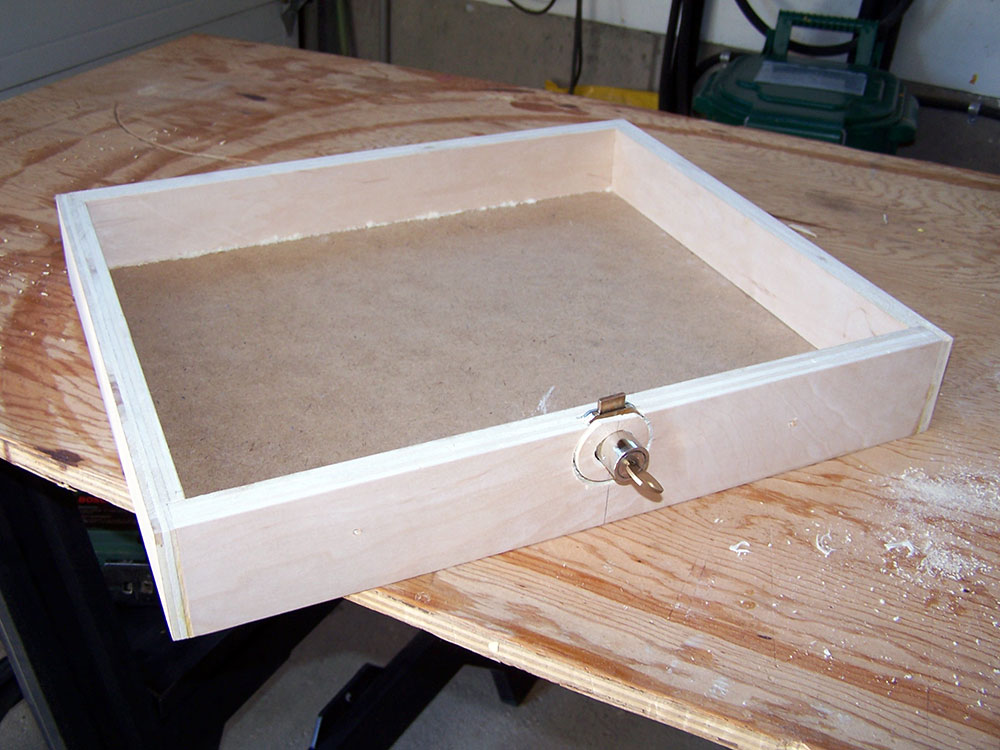

Drawer

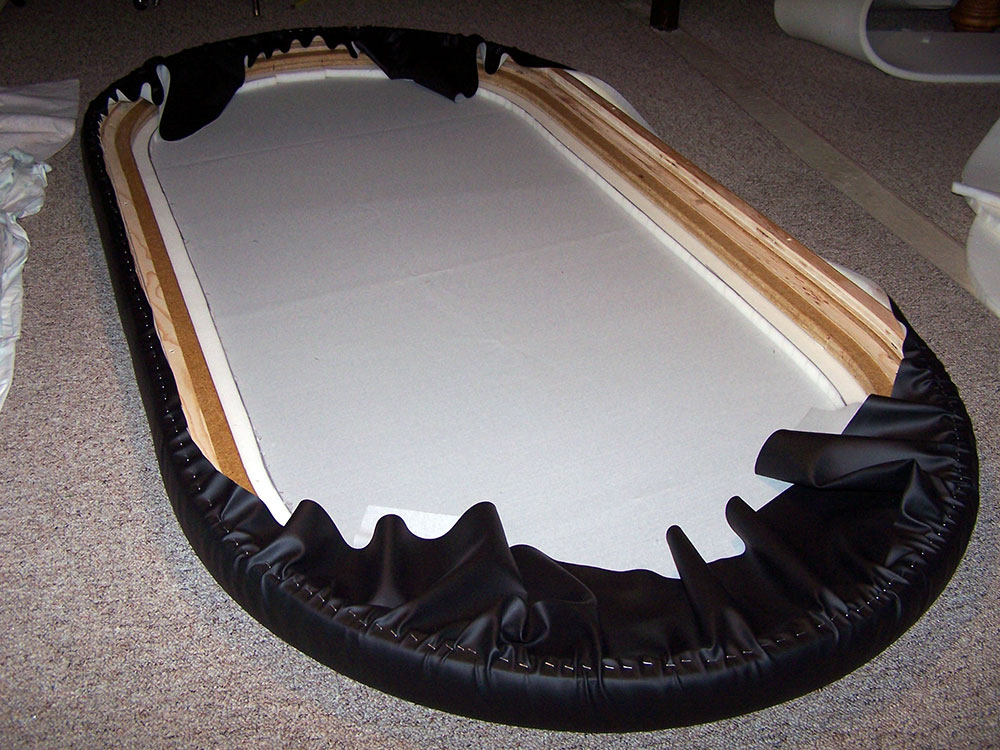

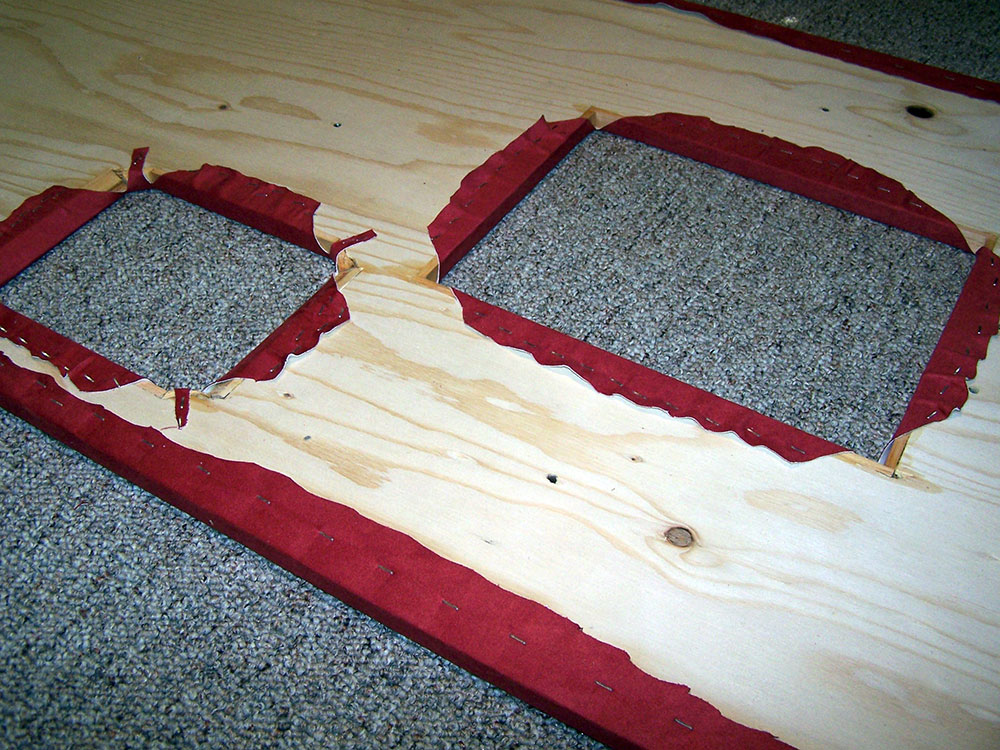

Padded Rest

Rest Done

Centre Padding

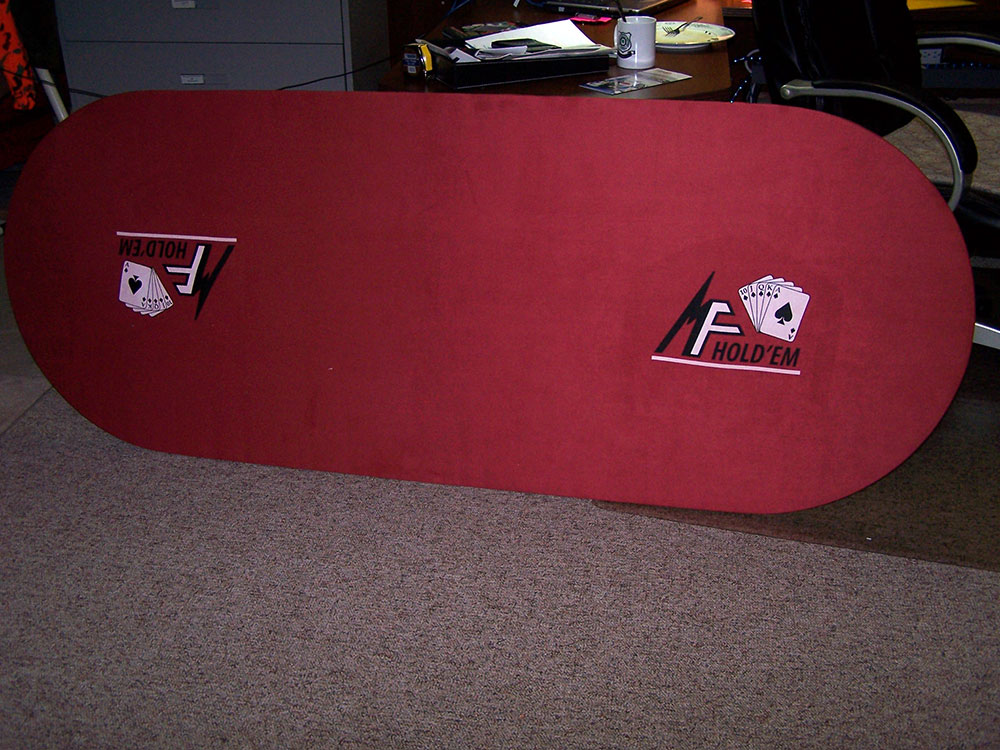

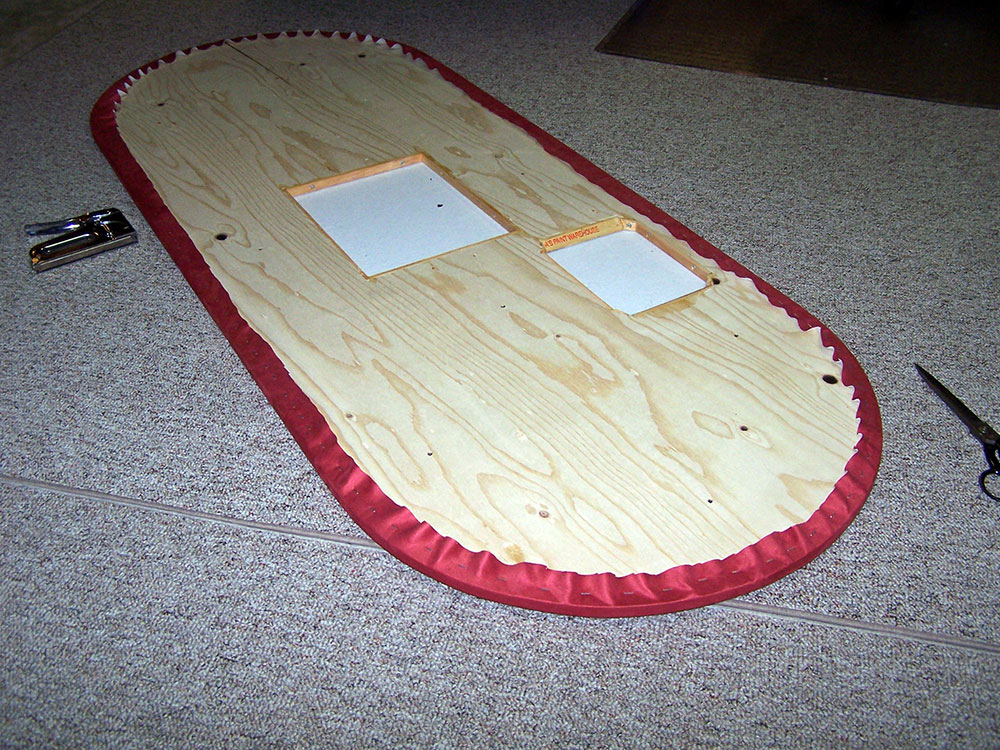

Red Cloth

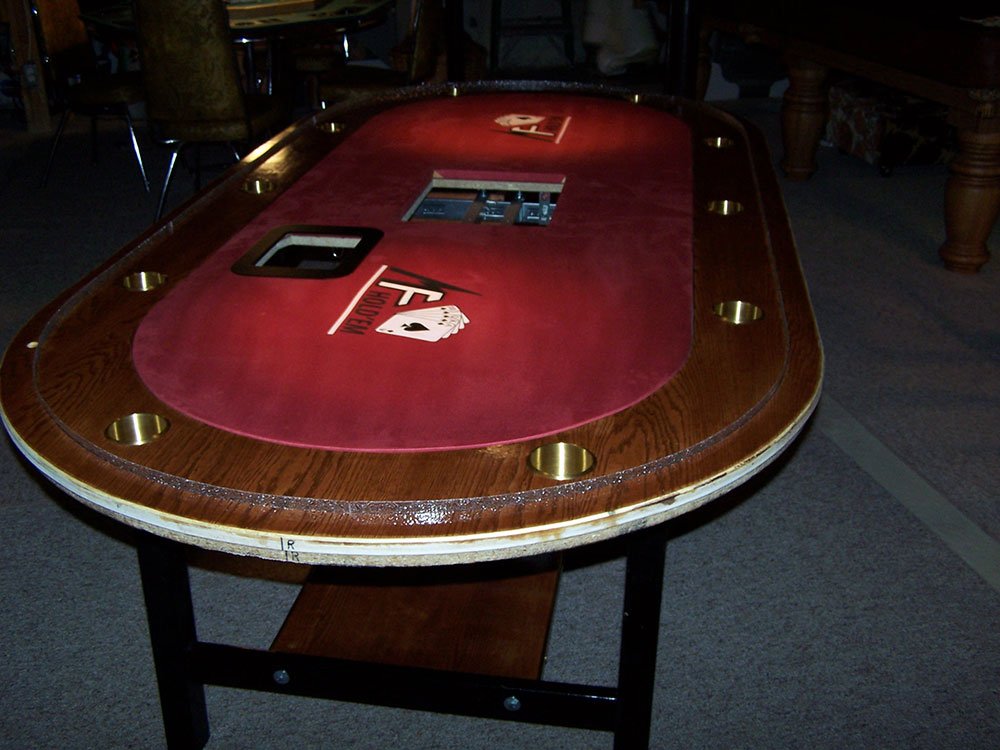

Centre Done

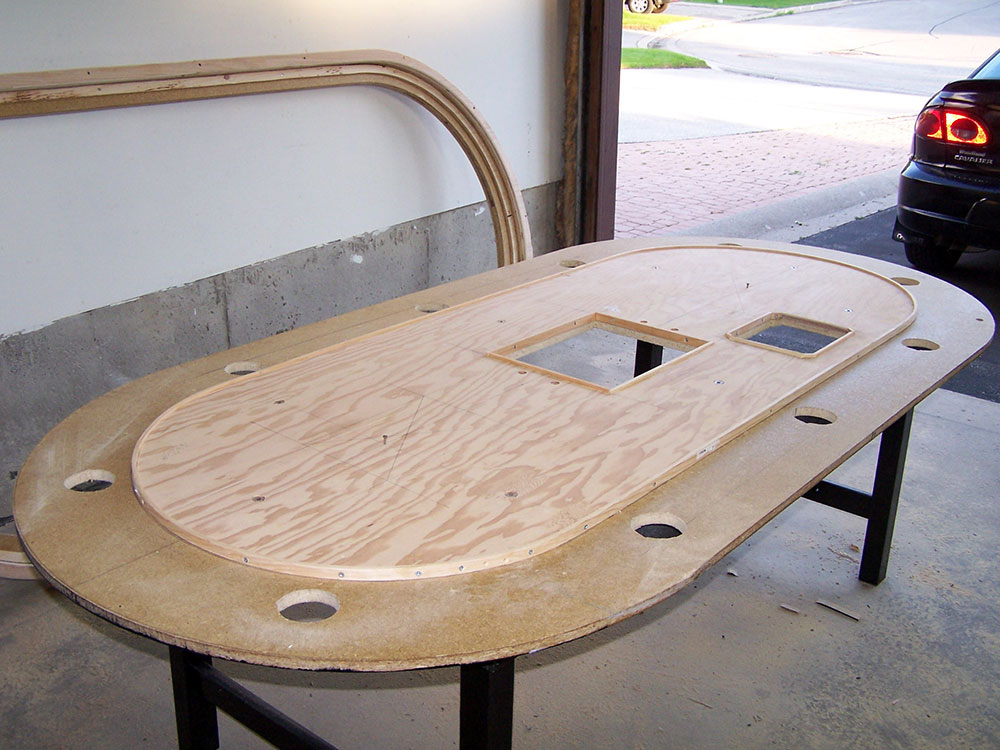

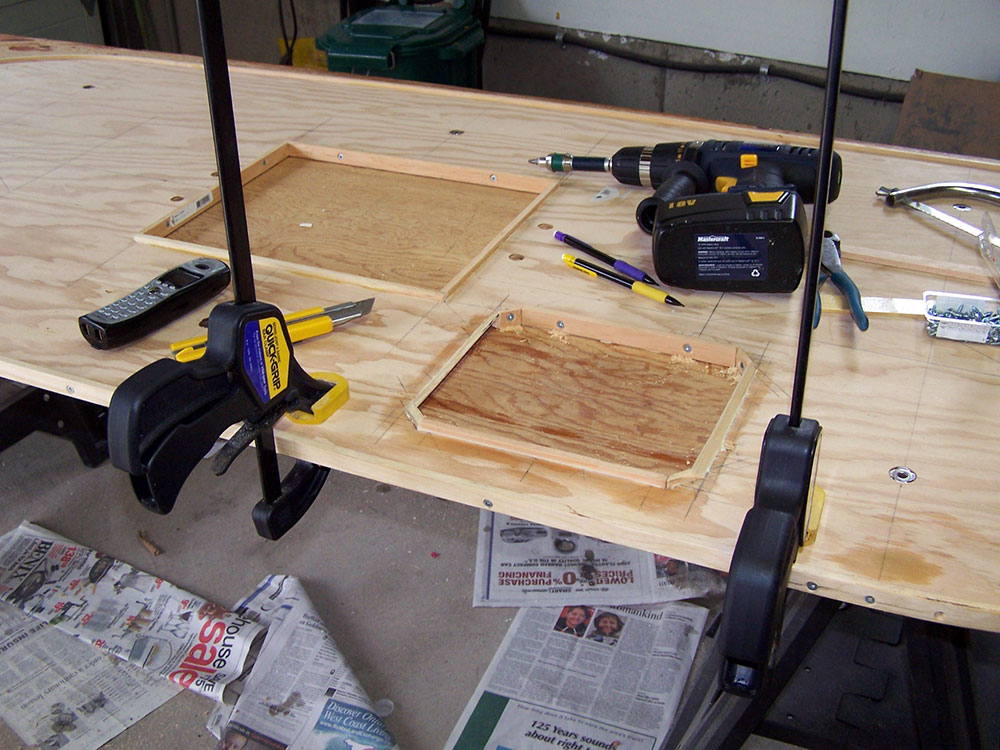

Holes Cut Out

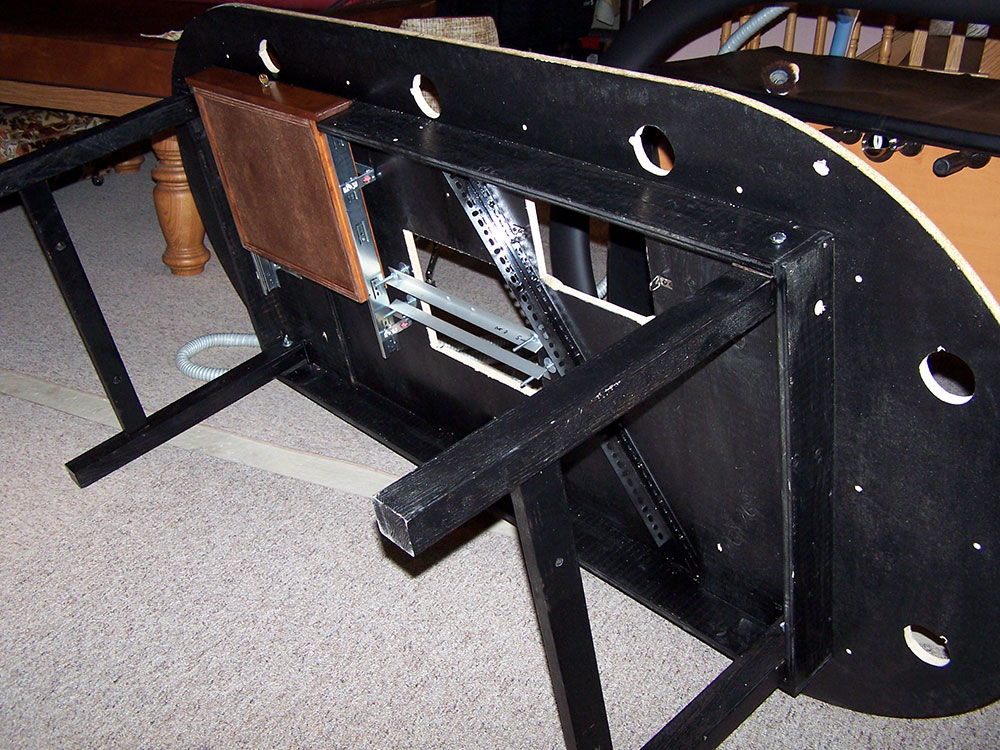

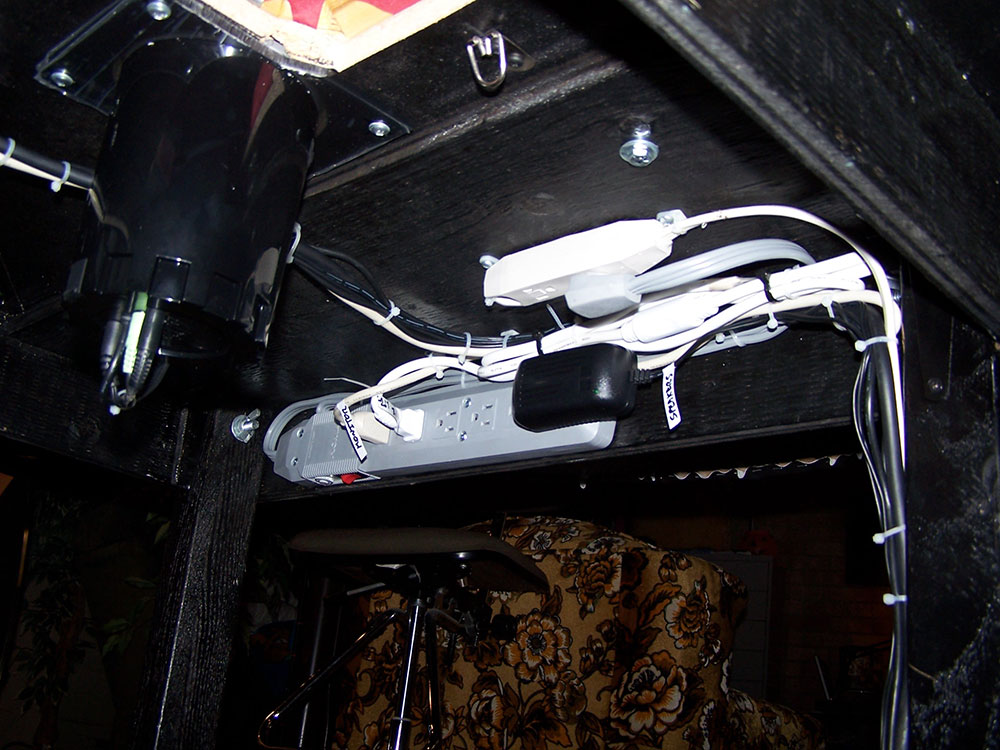

Bottom Hardware

Putting Together

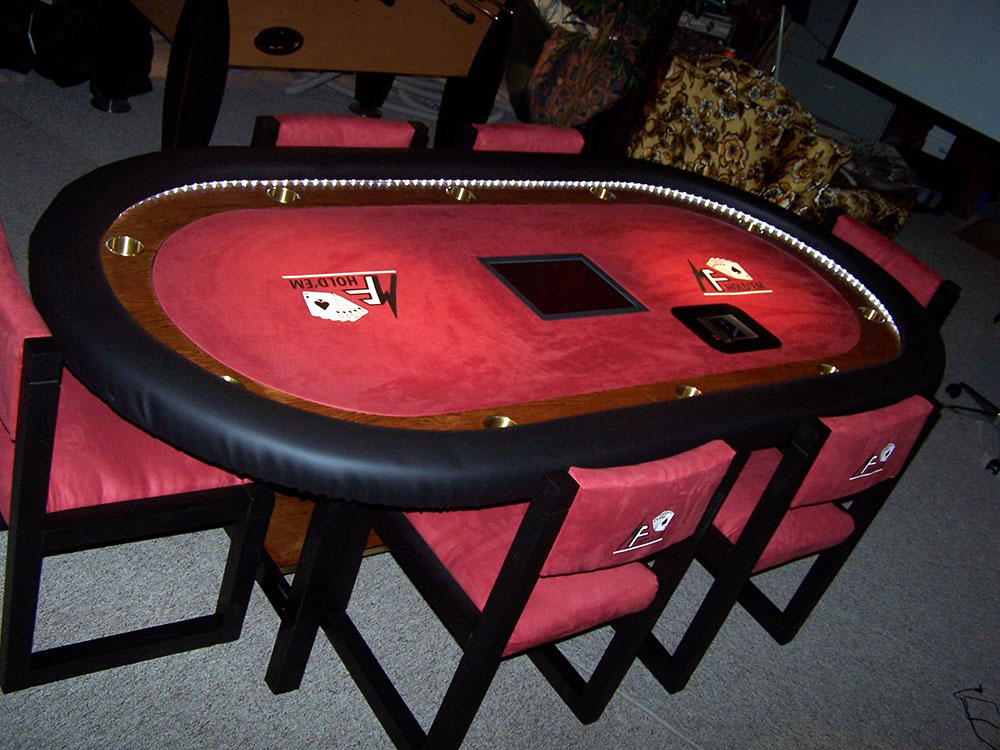

Table/Chairs

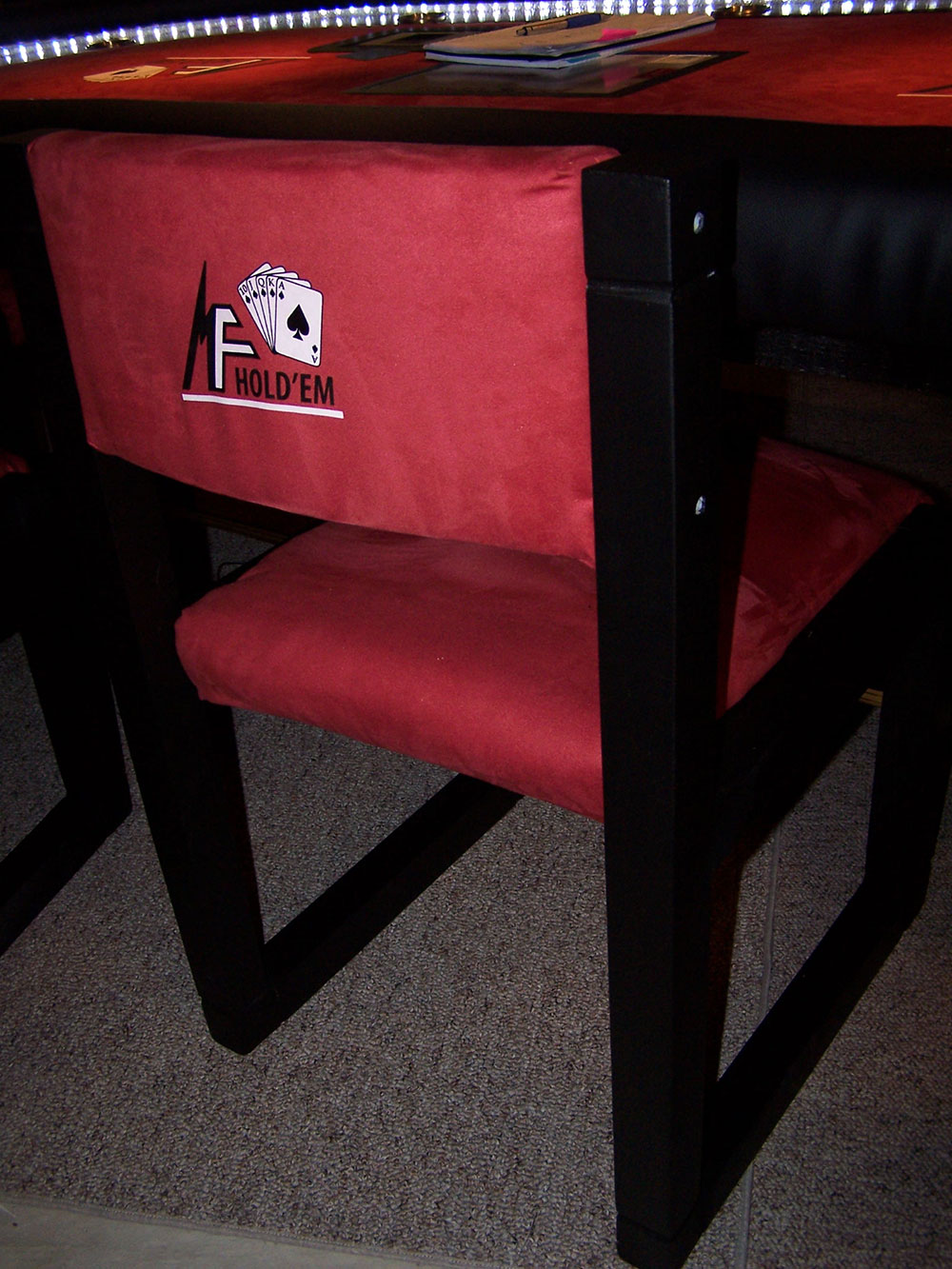

Chair Close

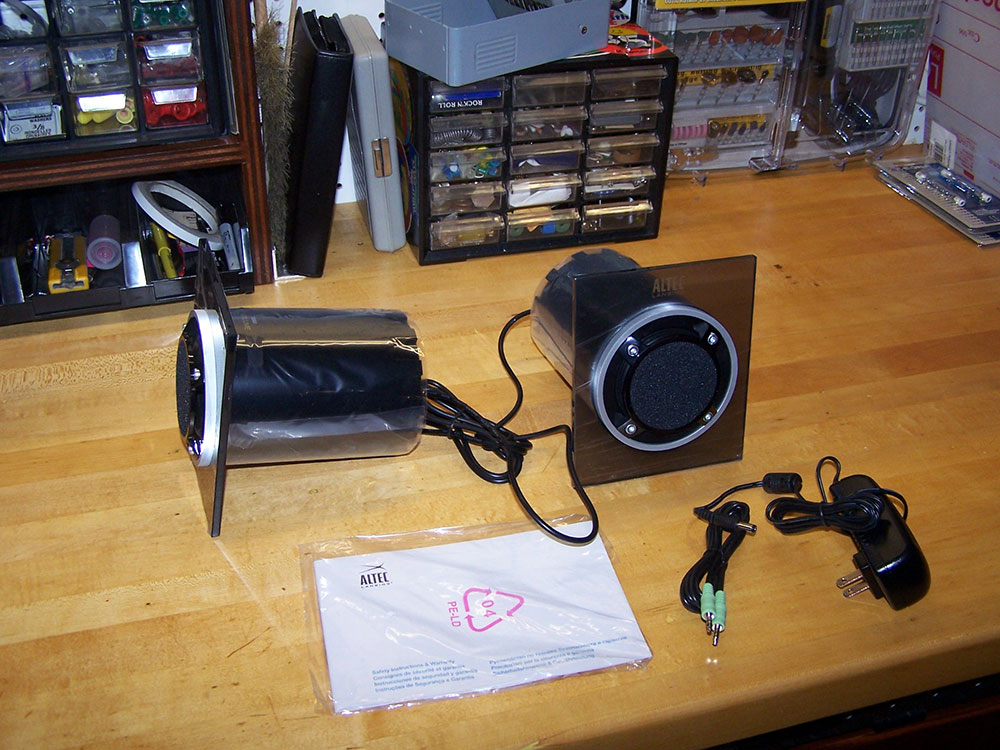

Speakers

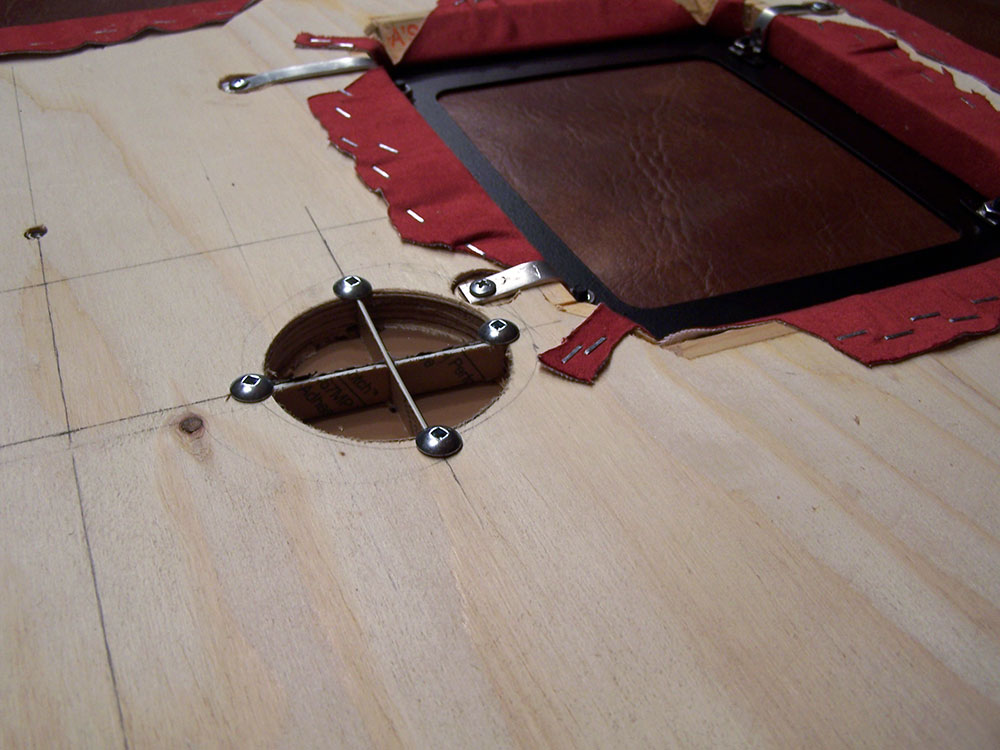

Speaker Hole

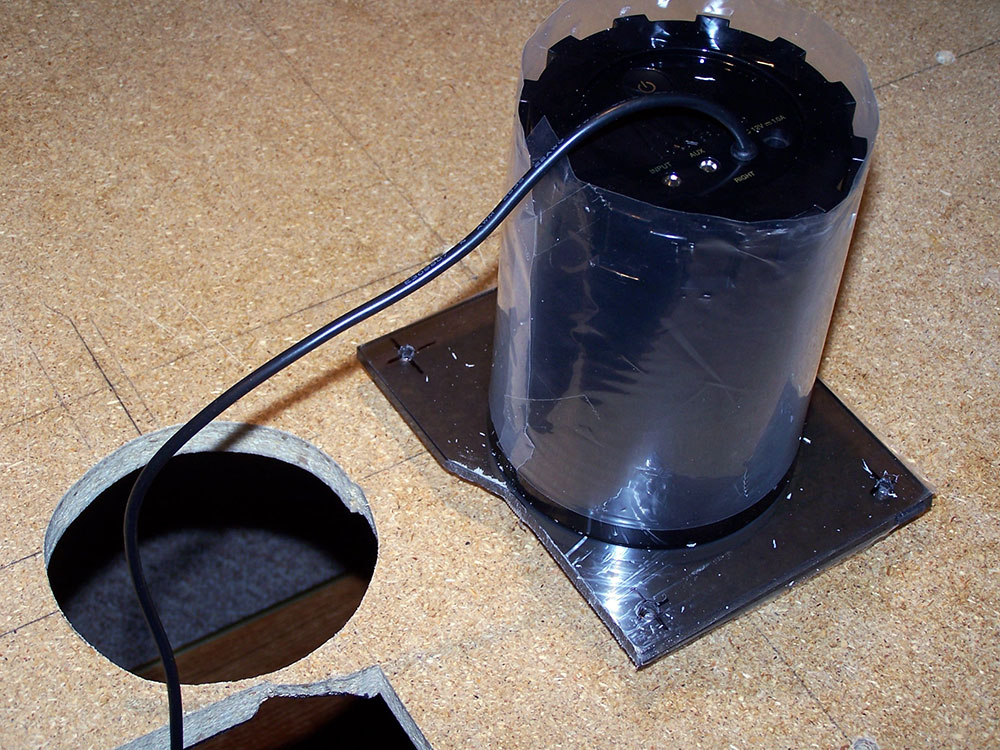

Speaker Fit




Speaker Mounted

Lights

Drink Holders

The Fun Part

Season Win





- TOP - White Box Server

When I received the data server box, I right away got rid of the fans to put in larger, quieter, and quality cooling fans. Replacing the centre wall fans required new mounts, so I created one from sheet aluminum, and used my left over piece of aluminum to create aerodynamic curve in front of power supply. As this was one of many computer builds I have done, the finished system turned out really solid. The term white box server, means that it is built to a set of strict hardware standards to be able to run a virtual environment that can be used to create multiple OS systems running at the same time, which is very powerful. The Rack also holds a punch receptacle for network connections, a hardware firewall, 24 port switch, and a couple of older NAS storage drive. The server system major components include:

  • ASUS P6T, Intel Core i7 920, 12GB Triple Channel DDR3-1333 Corsair Memory
  • Noctua NH-C12P SE14 Heatpipe Cooler and fans NF-P14, 3* NF-P14FLX, & 2* NF-R8
  • GeForce 8400 GS, Intel PRO/1000 PT Quad & CT Gigabit Ethernet Network Adapter
  • 3ware 9650SE-12ML SATA II hardware RAID controller
  • 8* SAMSUNG Spinpoint F2EG HD154UI 1.5TB & HITACHI Travelstar 500GB
  • NORCO RPC-4220 4U Rackmount Server Chassis, Thermaltake Toughpower 850W
  • Netgear ProSafe FVS336G Dual WAN Gigabit VPN/Firewall,
  • Netgear GS724Tv ProSafe 24-Port Gigabit Managed Switch
  • Blackbox server rack-RM820A-3F-R2
  • Vmware ESXi 4.01, Openfiler-2.3-x86_64, Ubuntu 10.10 64, WinXP Pro SP3 32
Server Build

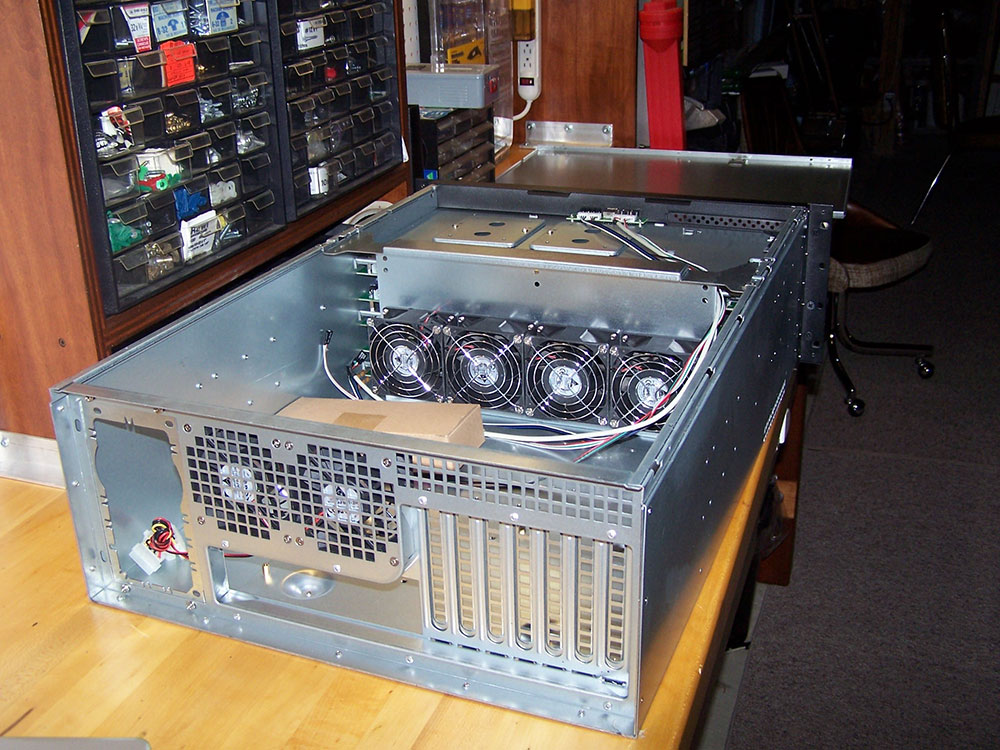

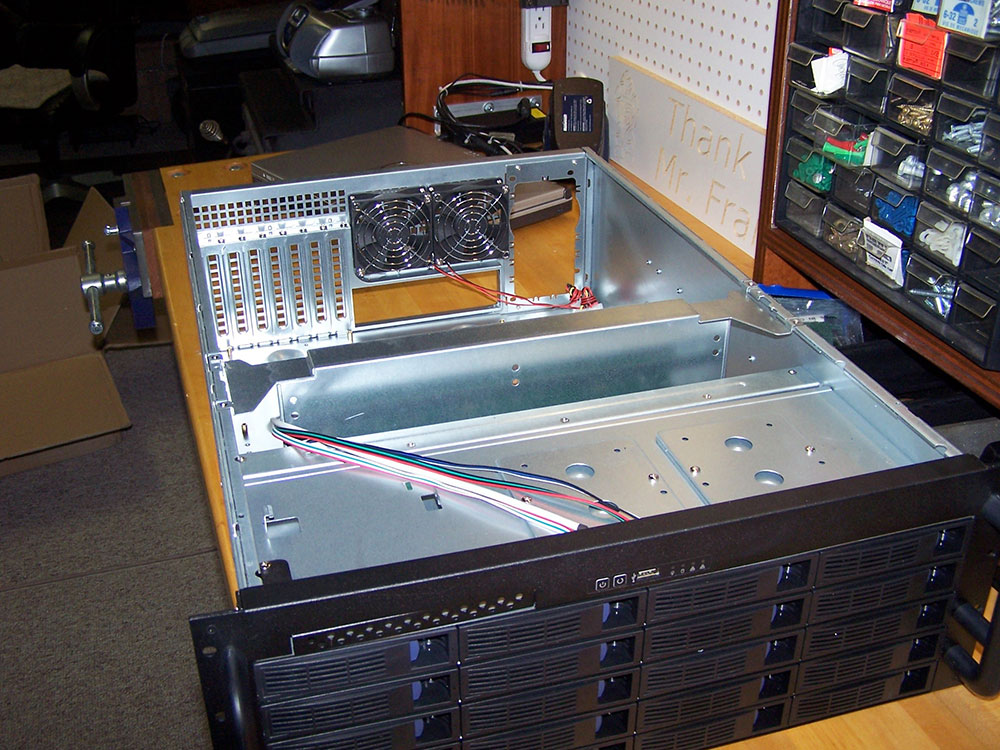

Norco Server Case

Back View

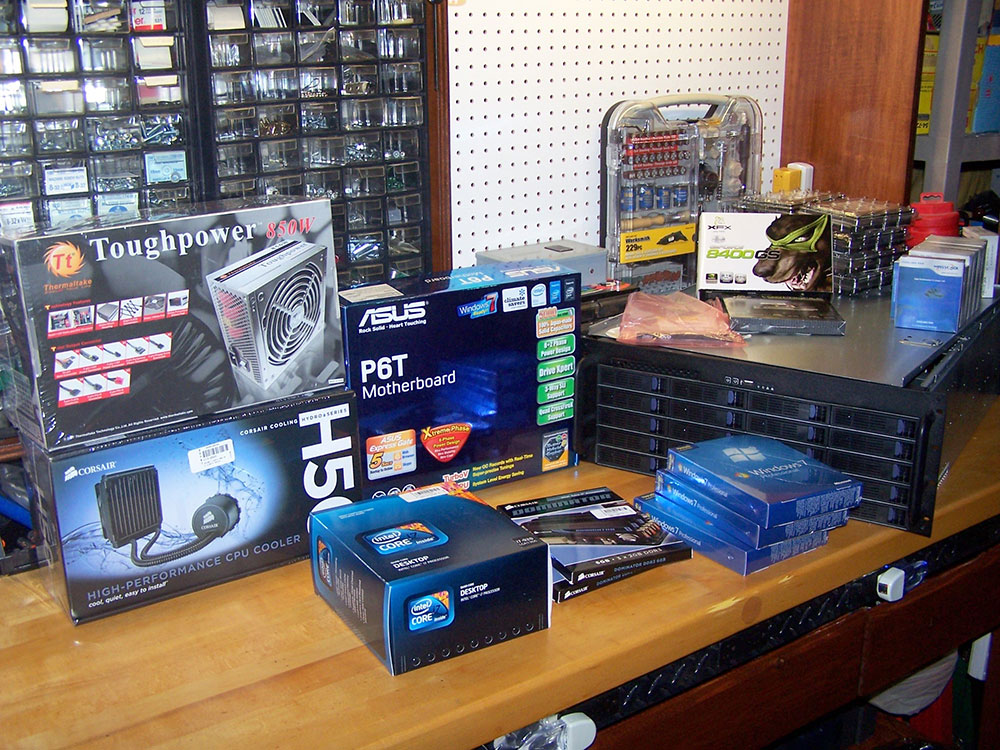

New Components

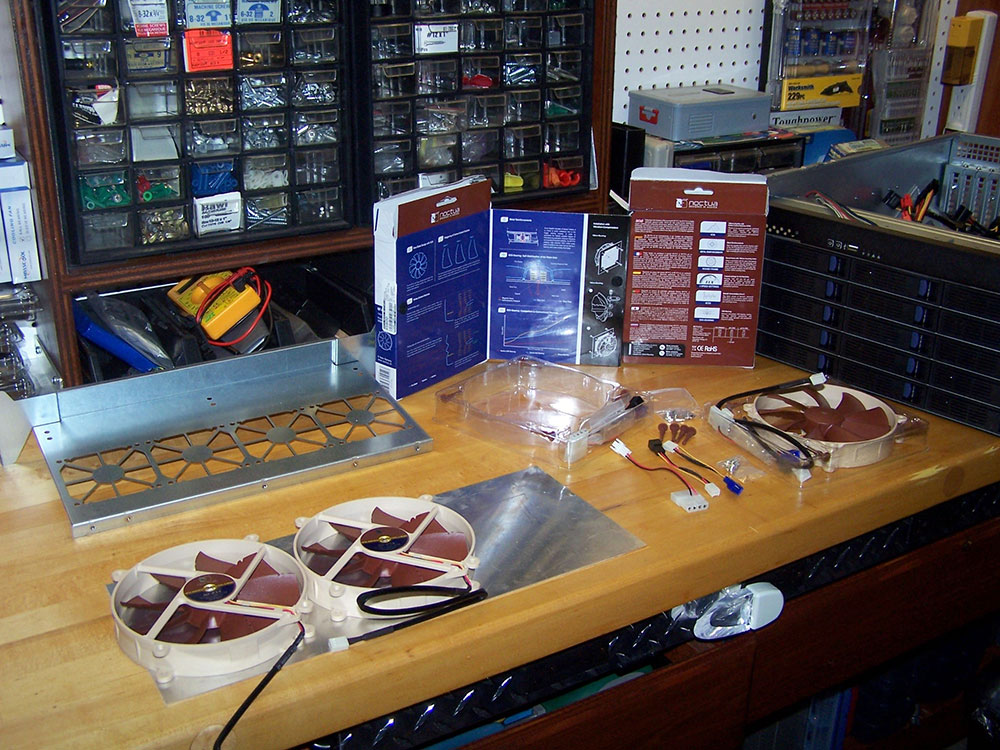

Fan Replacement

Fan Layout

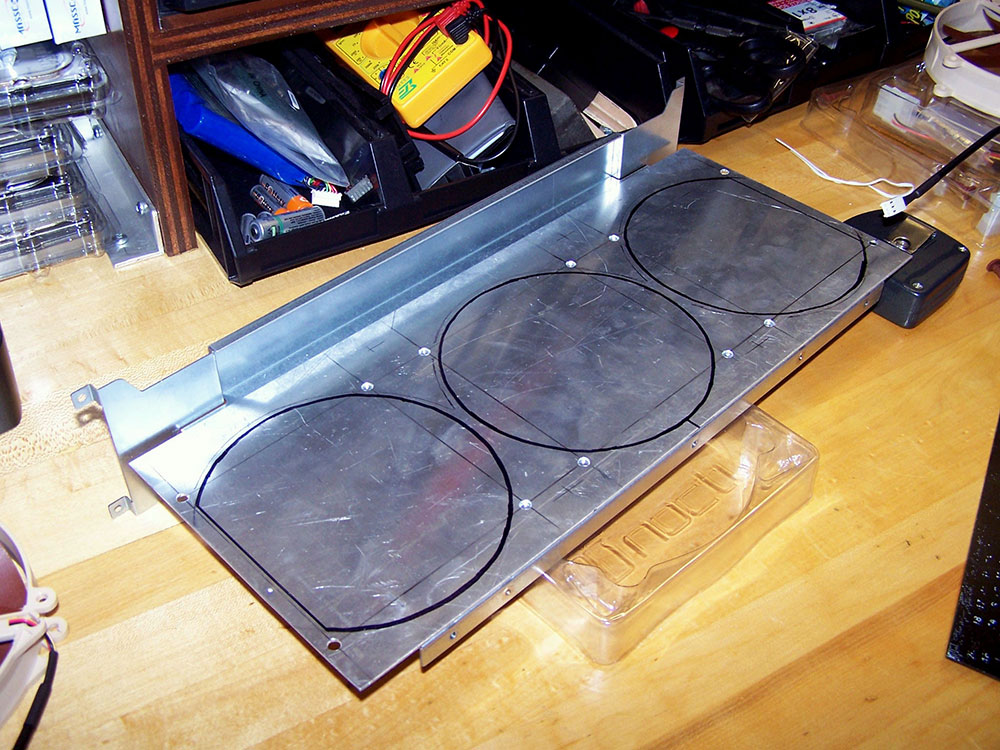

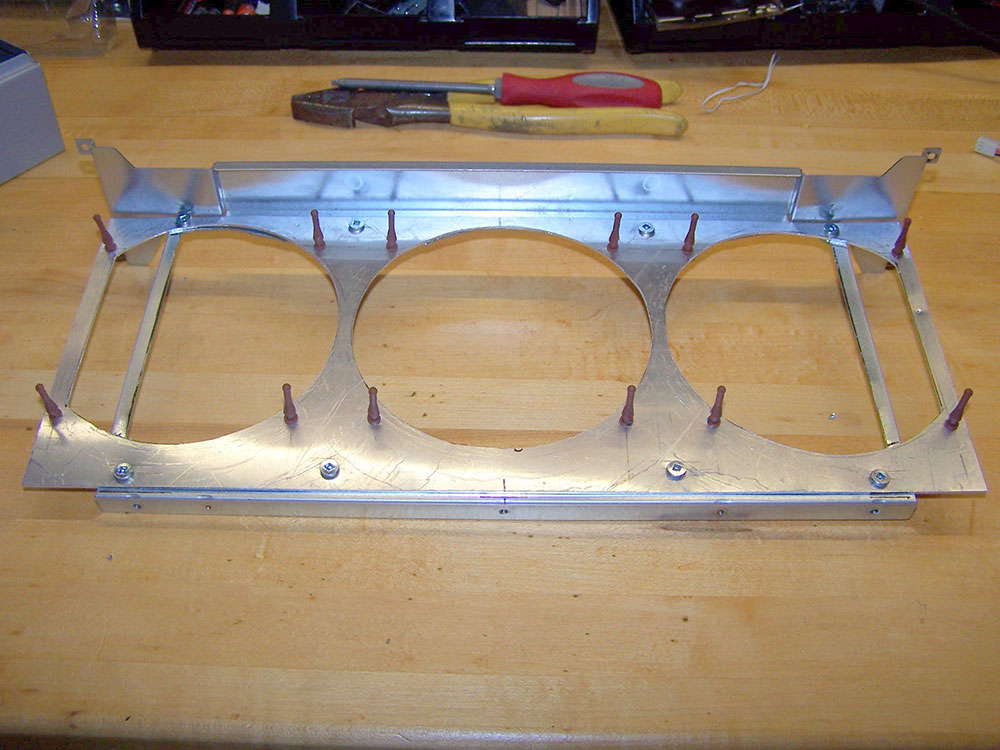

Fan Cut-out

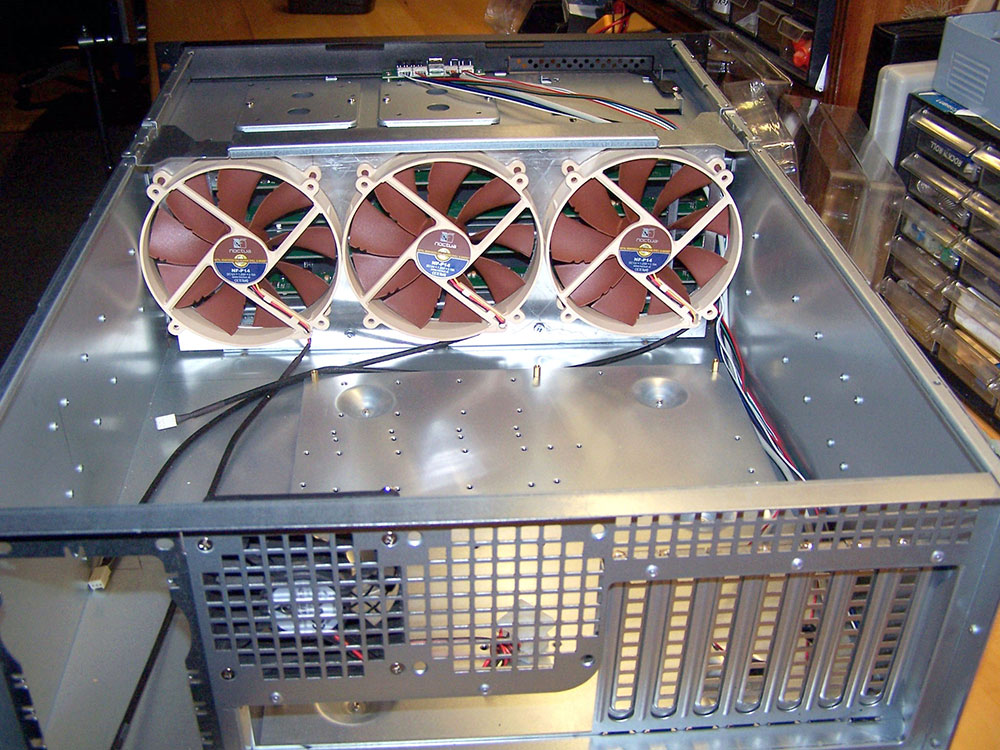

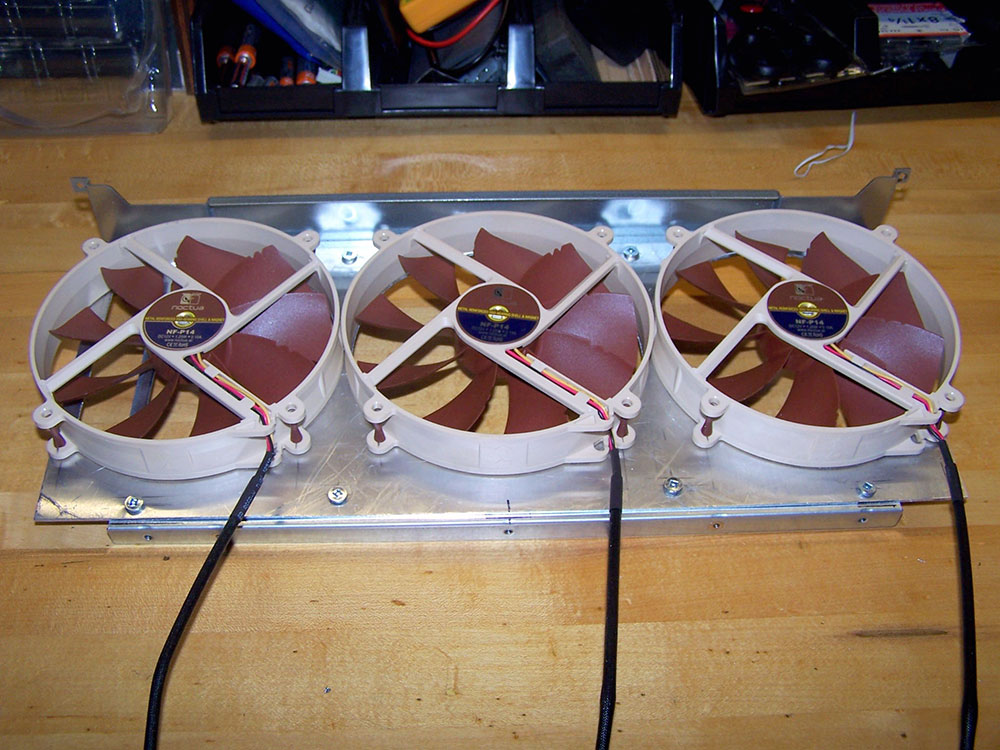

Fans Mounted

Fans in Case

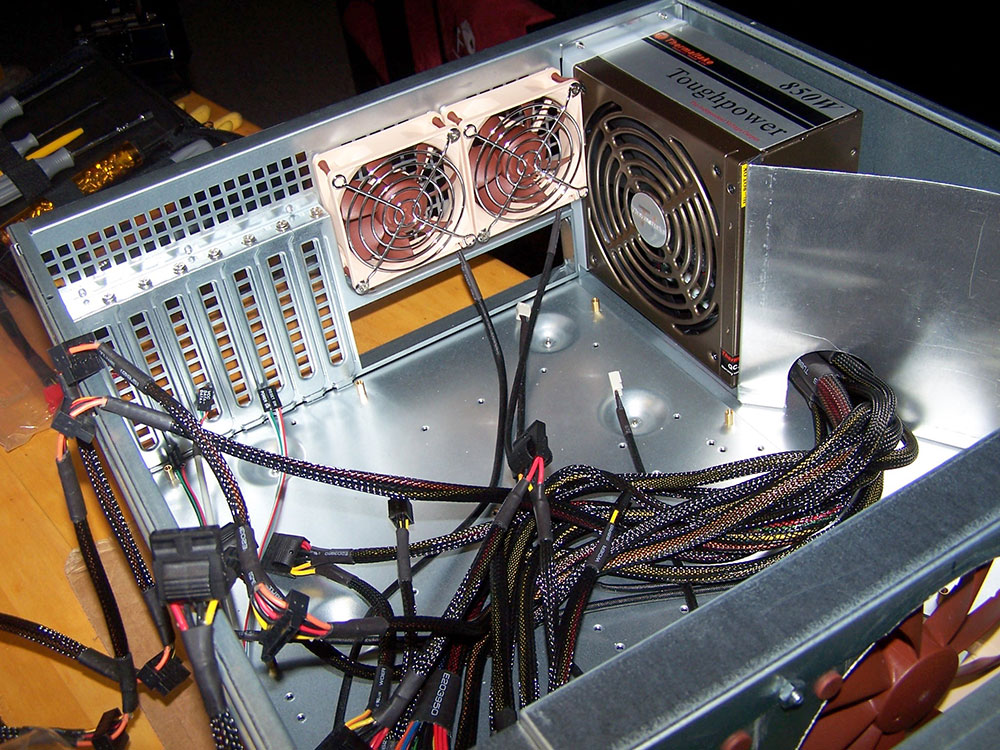

Power Supply

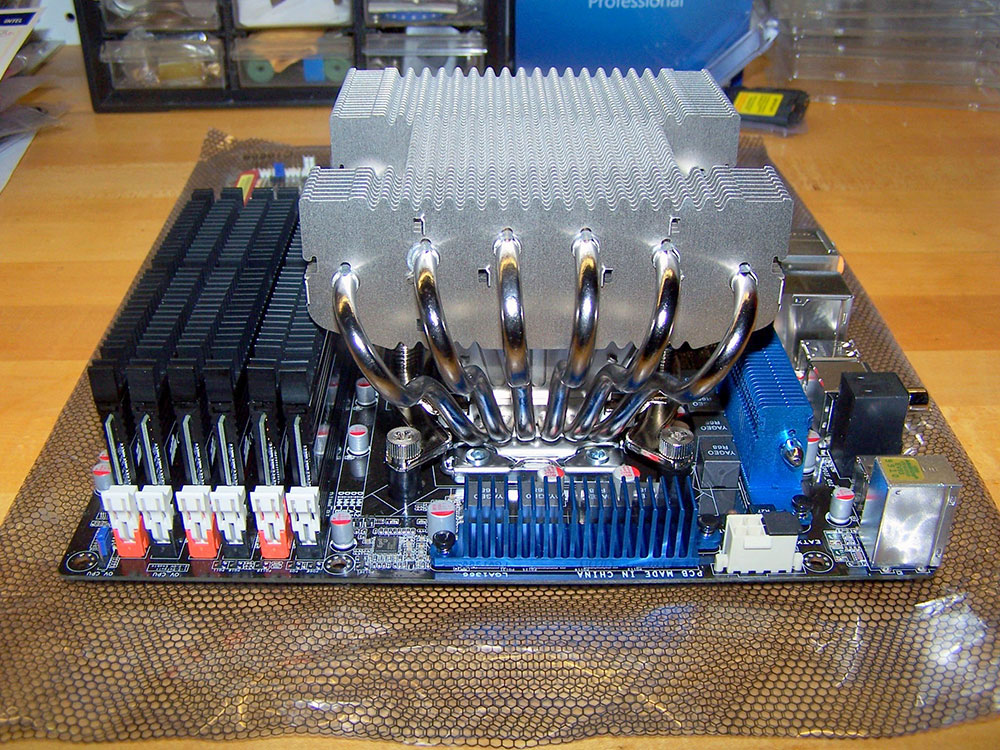

Motherboard

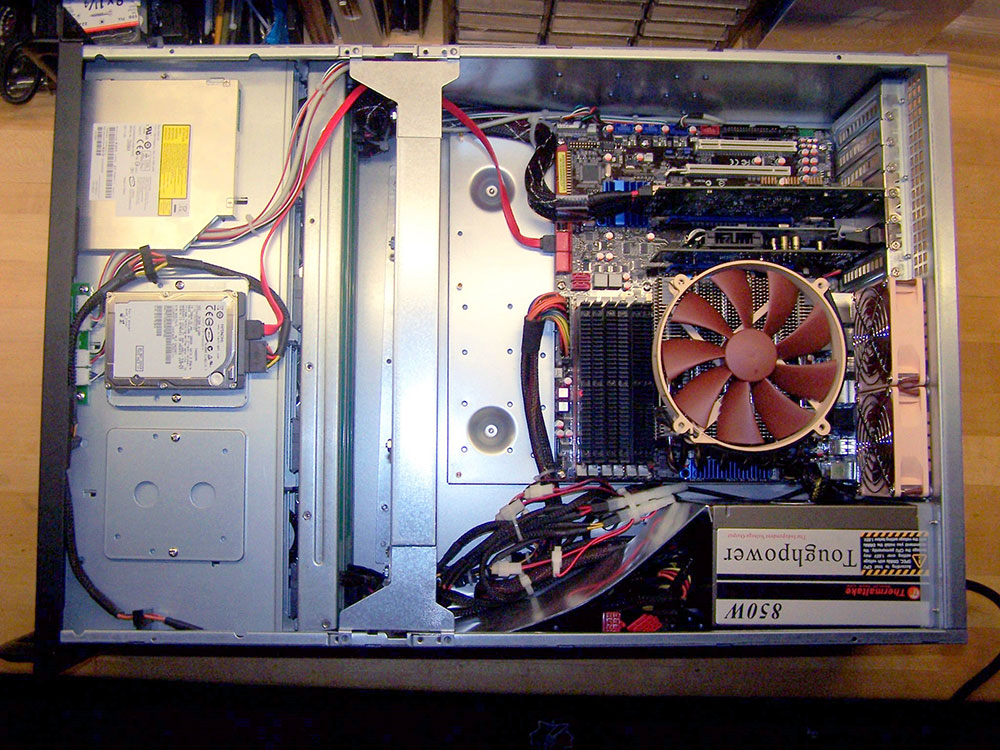

All Parts In

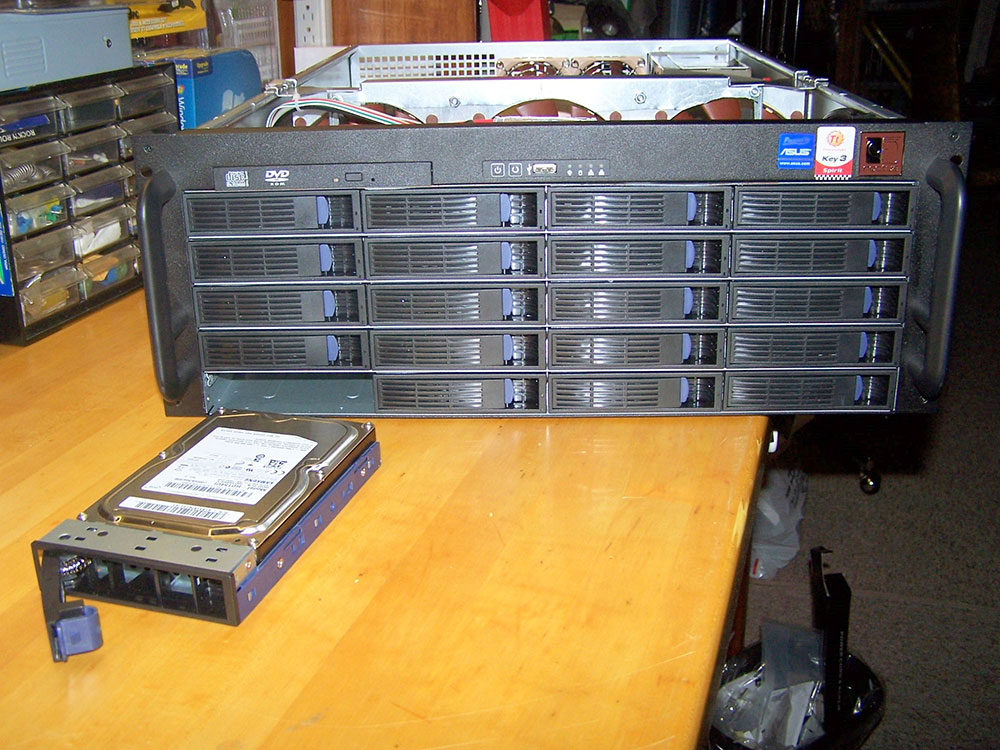

Drive Bays

Server Built

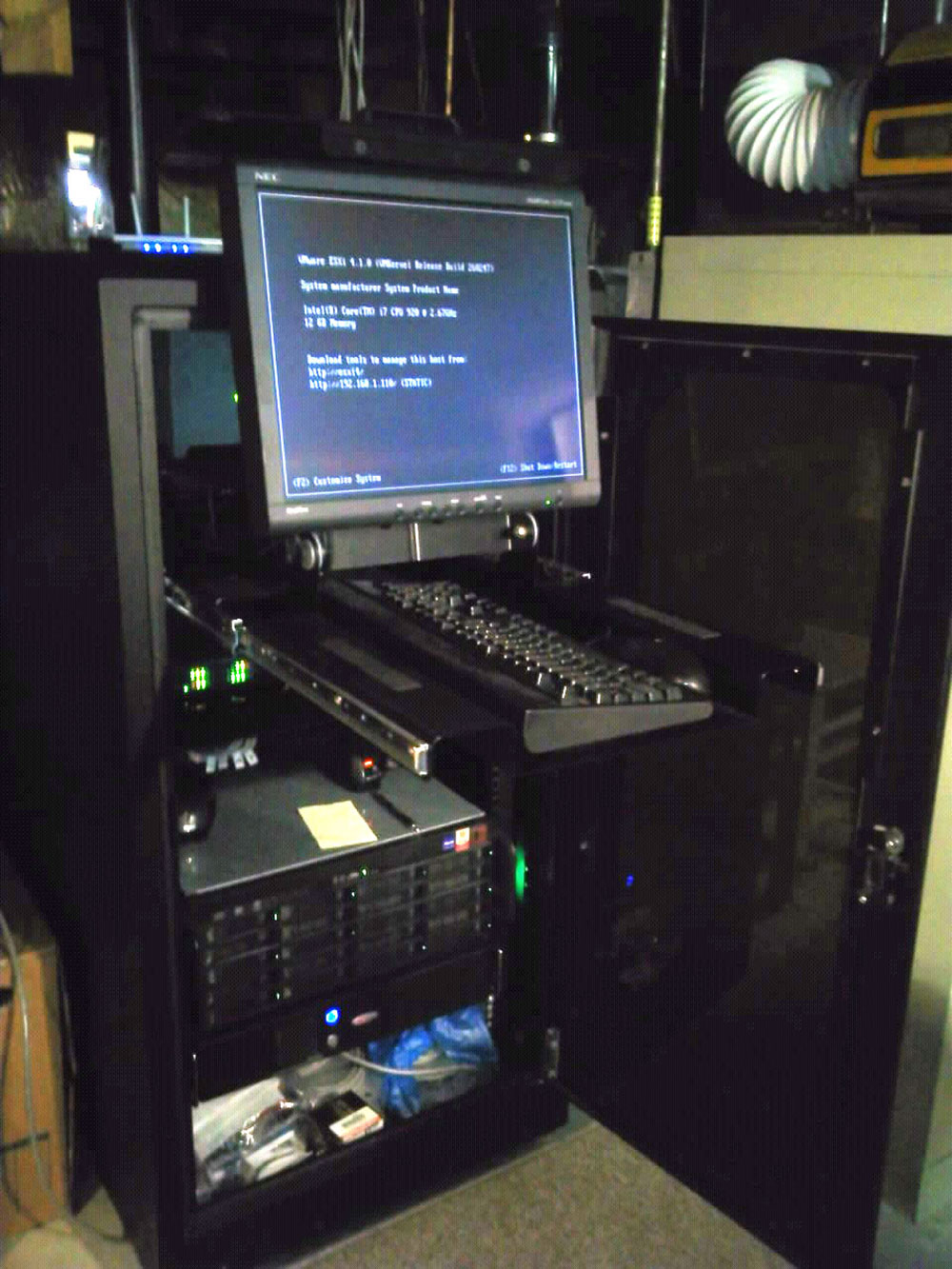

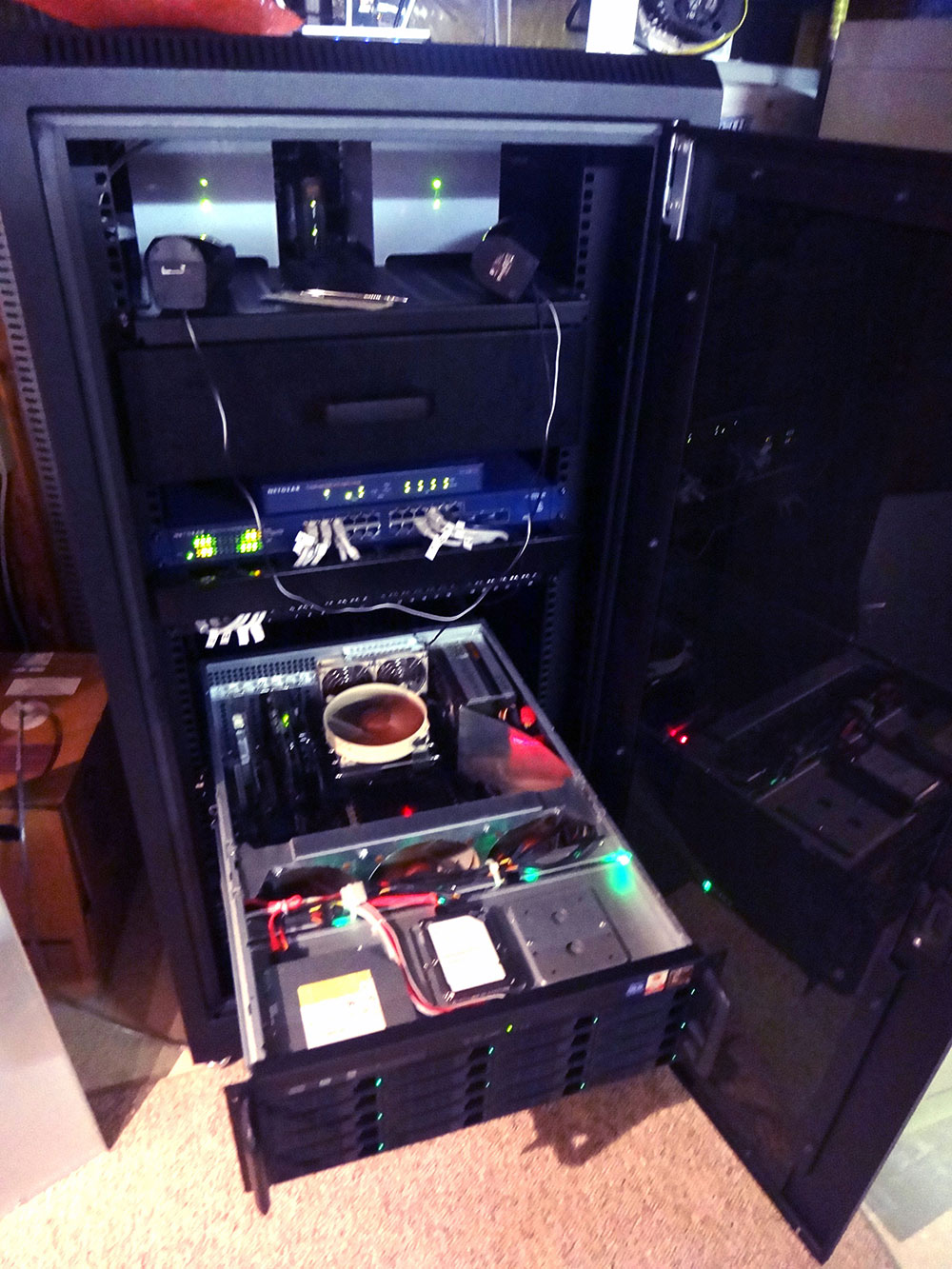

Server in Rack

Server Running





- TOP - Work Bench Design and Build

This was a summer project. Work bench design was done in Inventor, drawings were printed, then all parts were cut. Next all parts were stained and clear coated, then work bench and hutch were put together. It was very satisfying to see all the components fit, as creating a 3D model and a set of drawings, allowed no issues with fit or complications, and was able to build it very quickly as all of the smallest of details were resolved before even one piece of wood was cut.

Work Bench Build

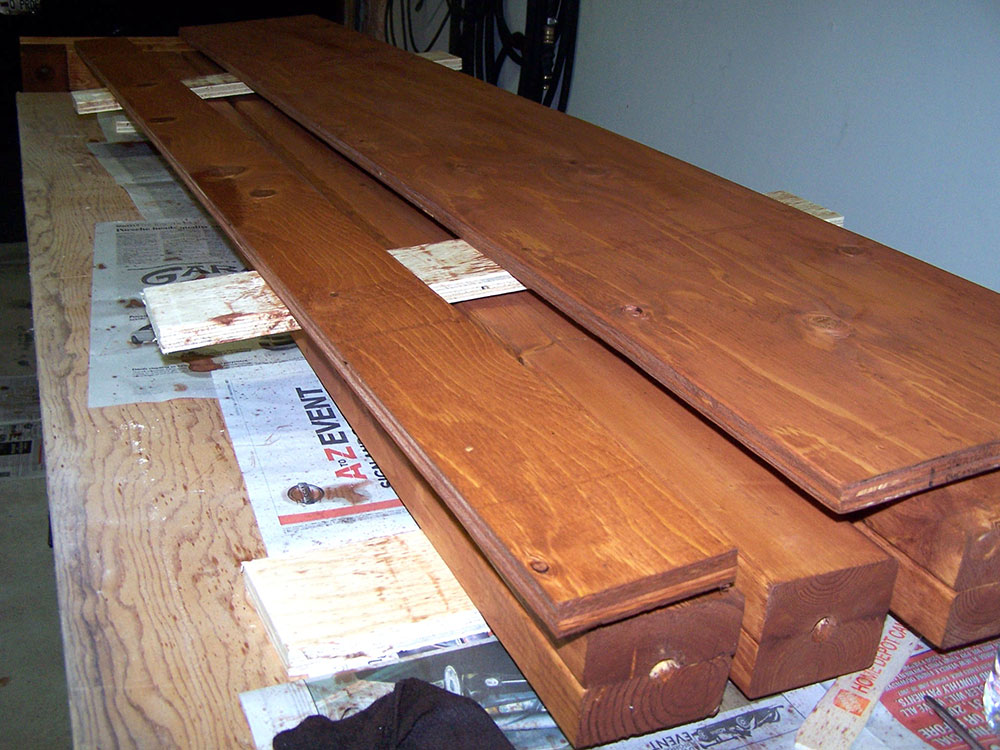

Wood Staining

Wood Stained

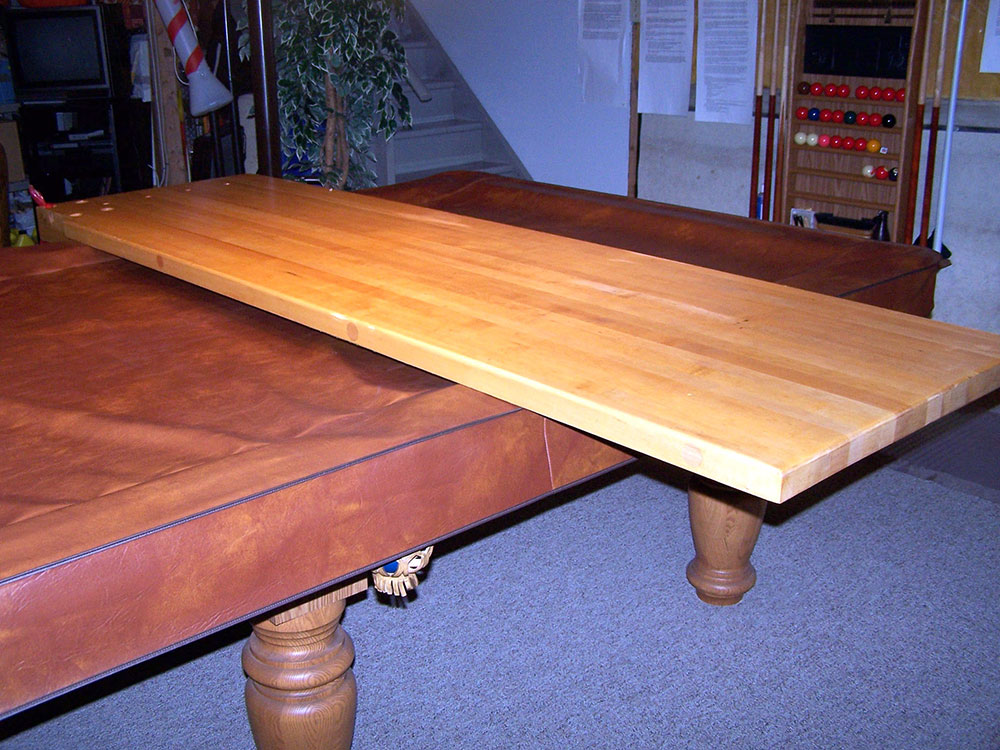

Maple Table Top

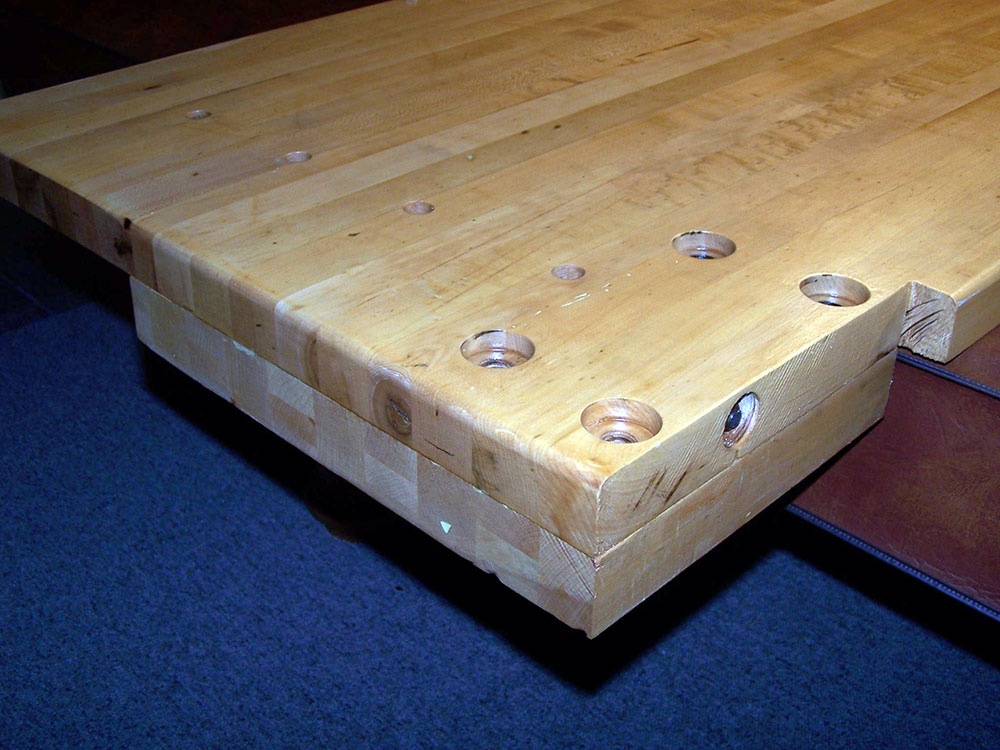

Vice Mount Holes

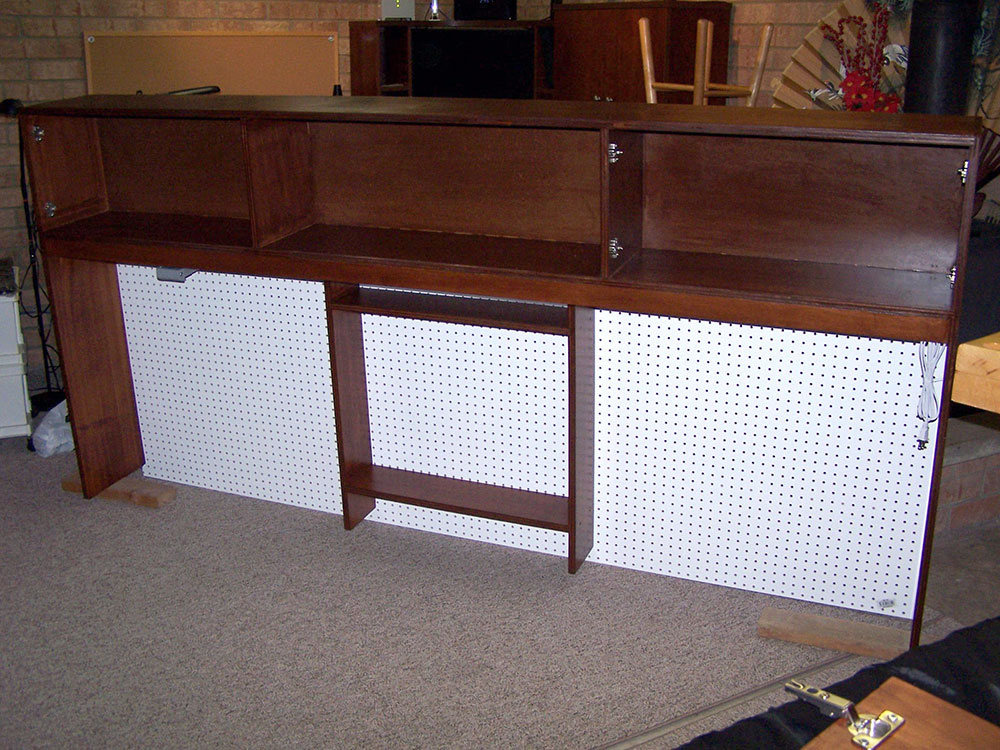

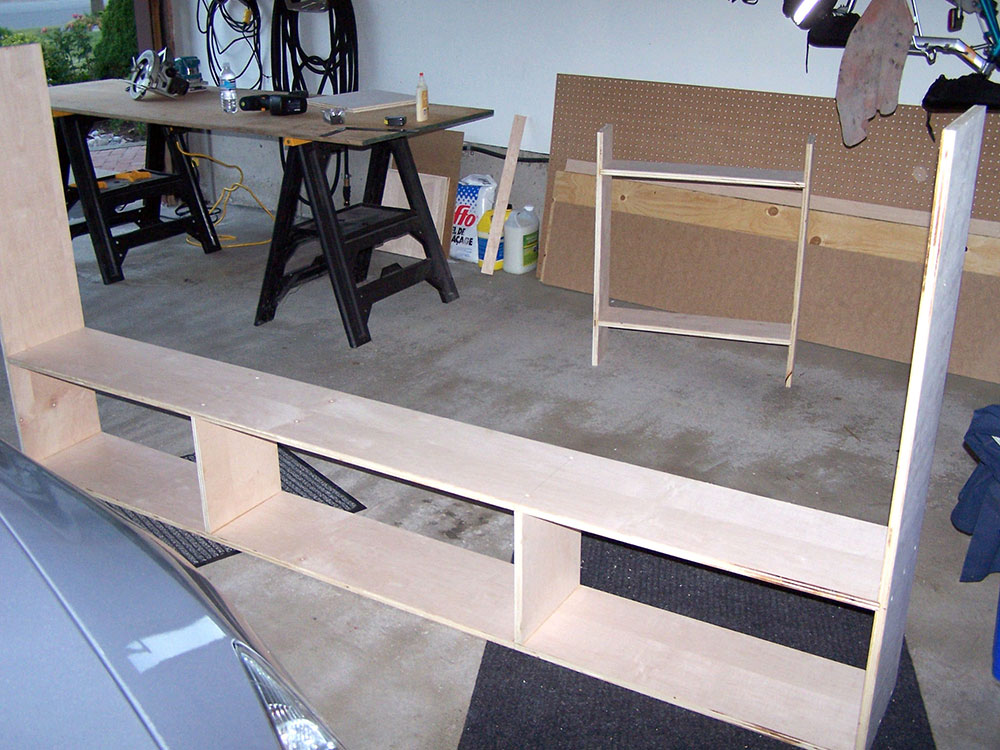

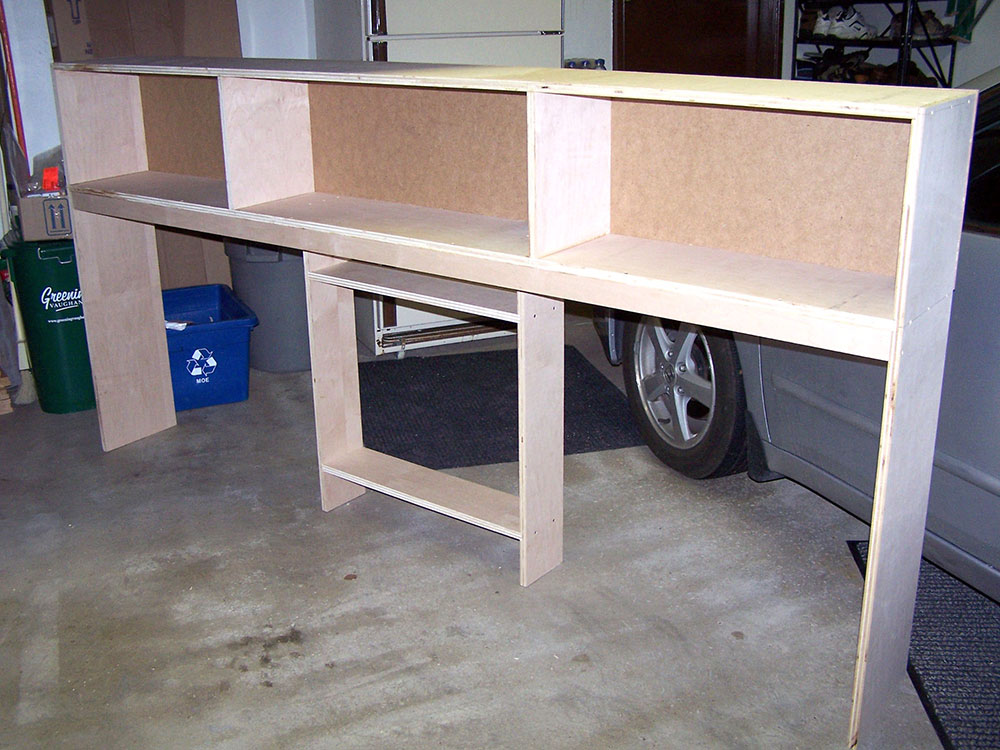

Hutch




Hutch Top Back

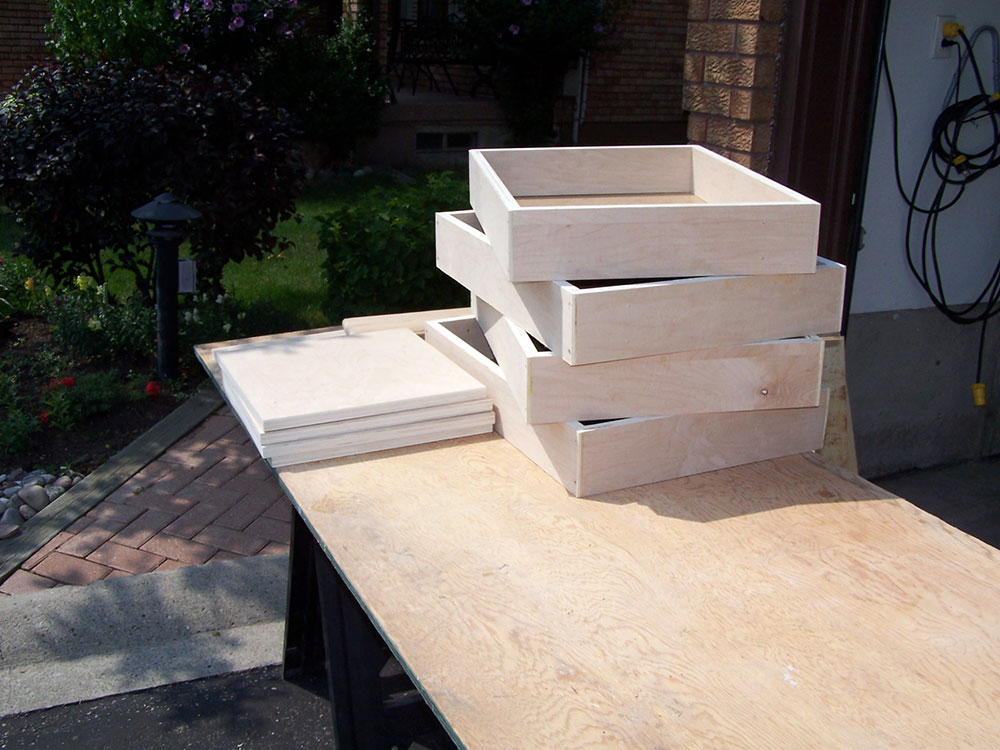

Drawers Made

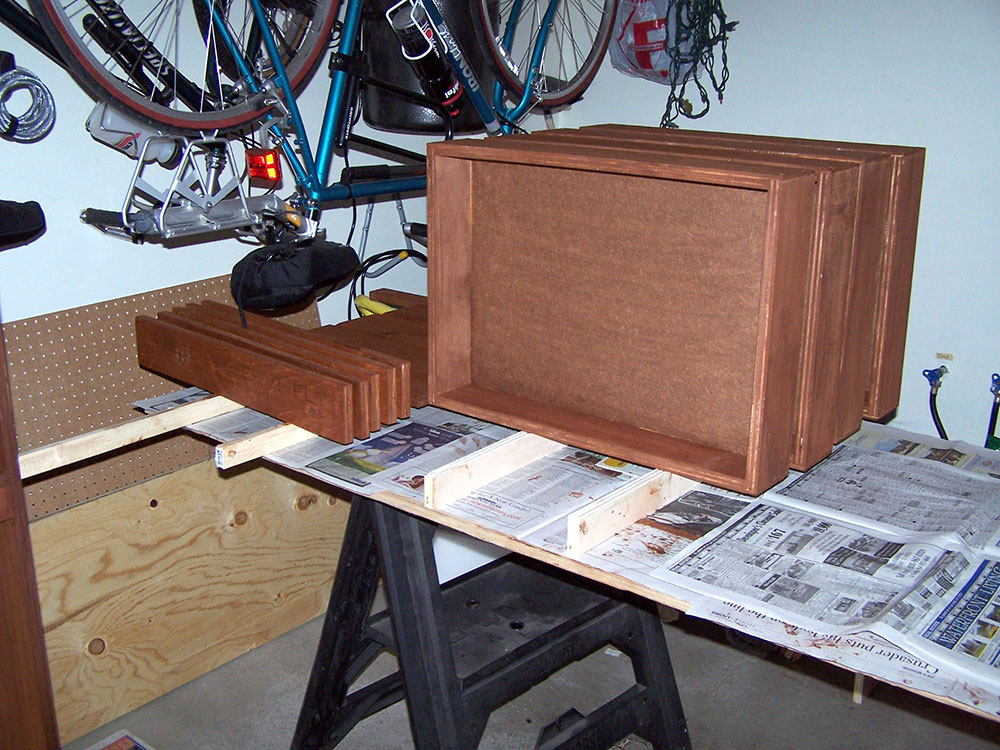

Drawers Stained

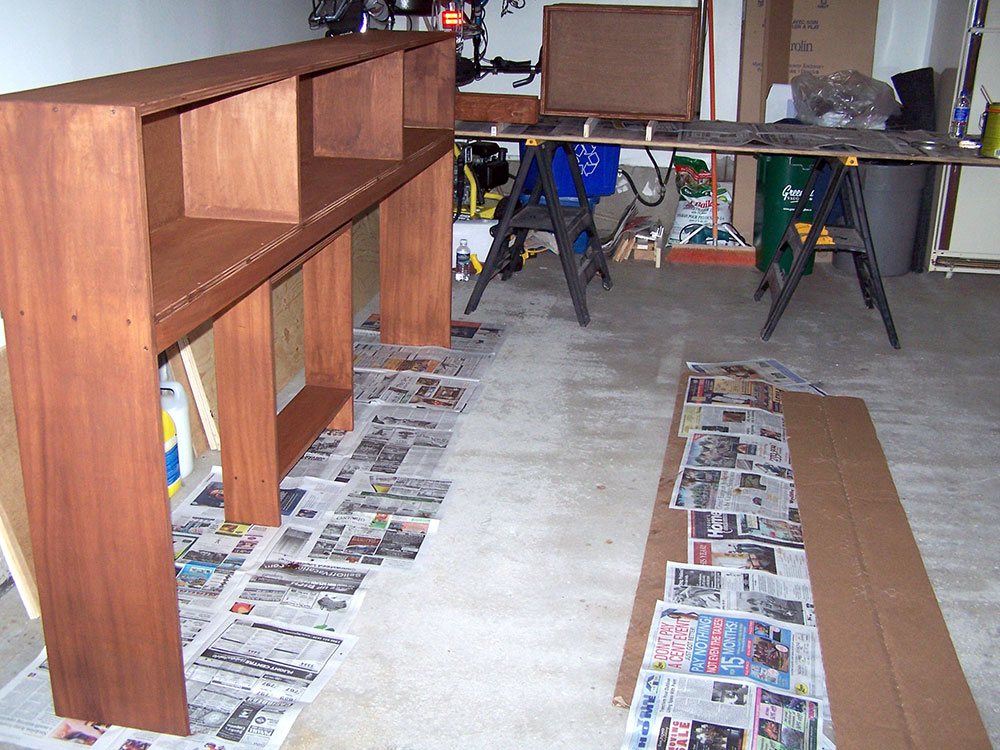

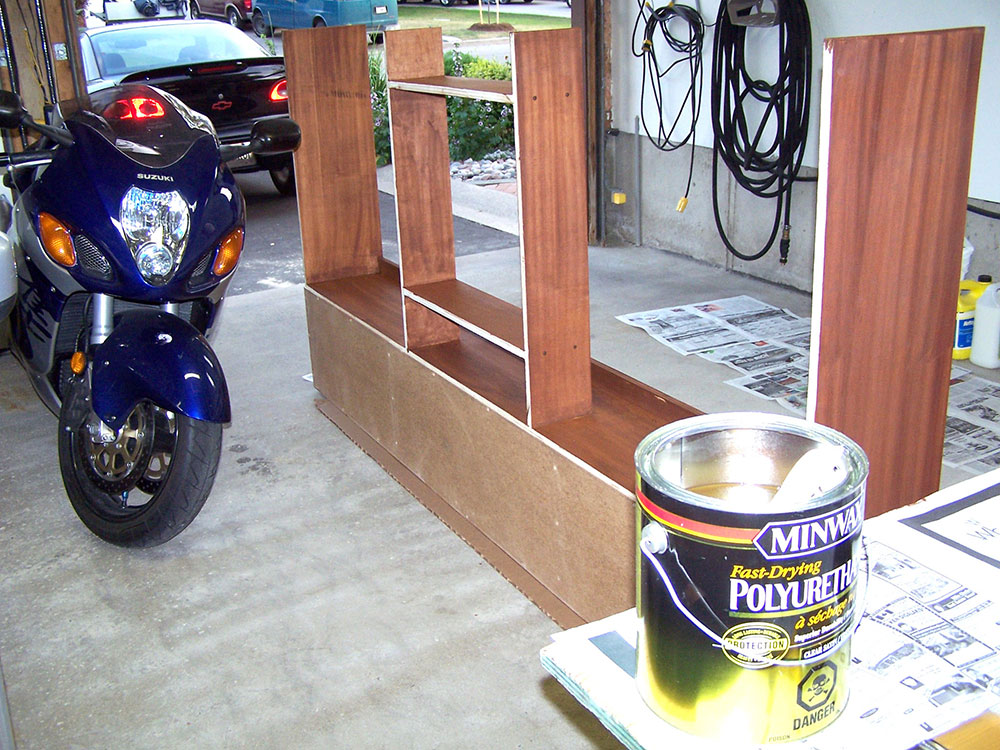

Hutch stained

Hutch stained

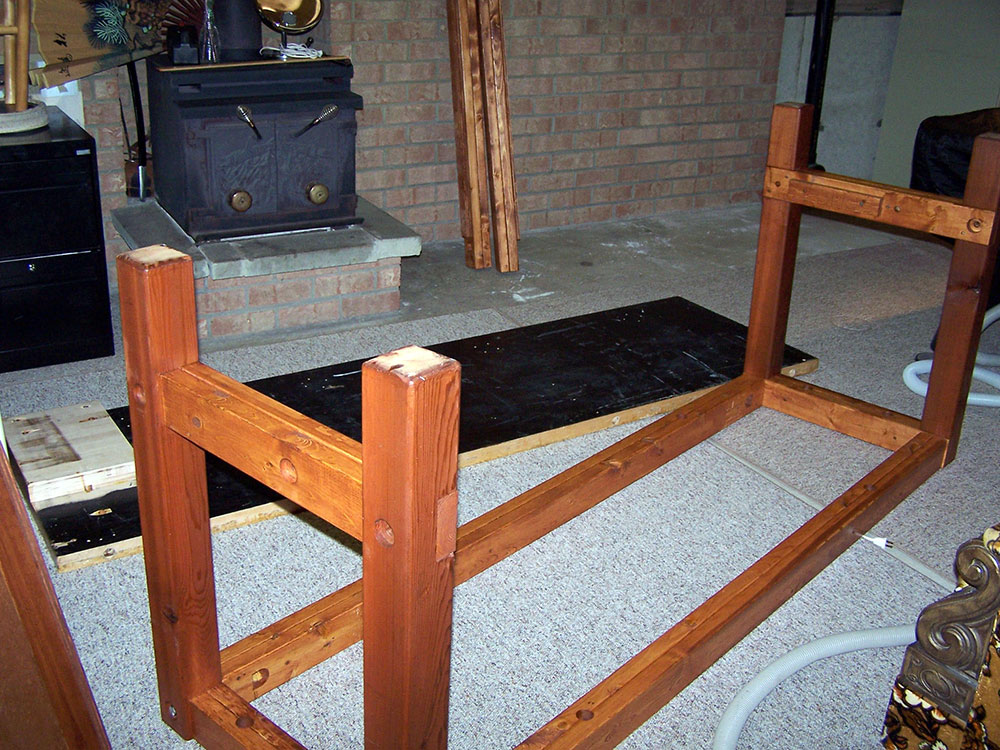

Bench Frame

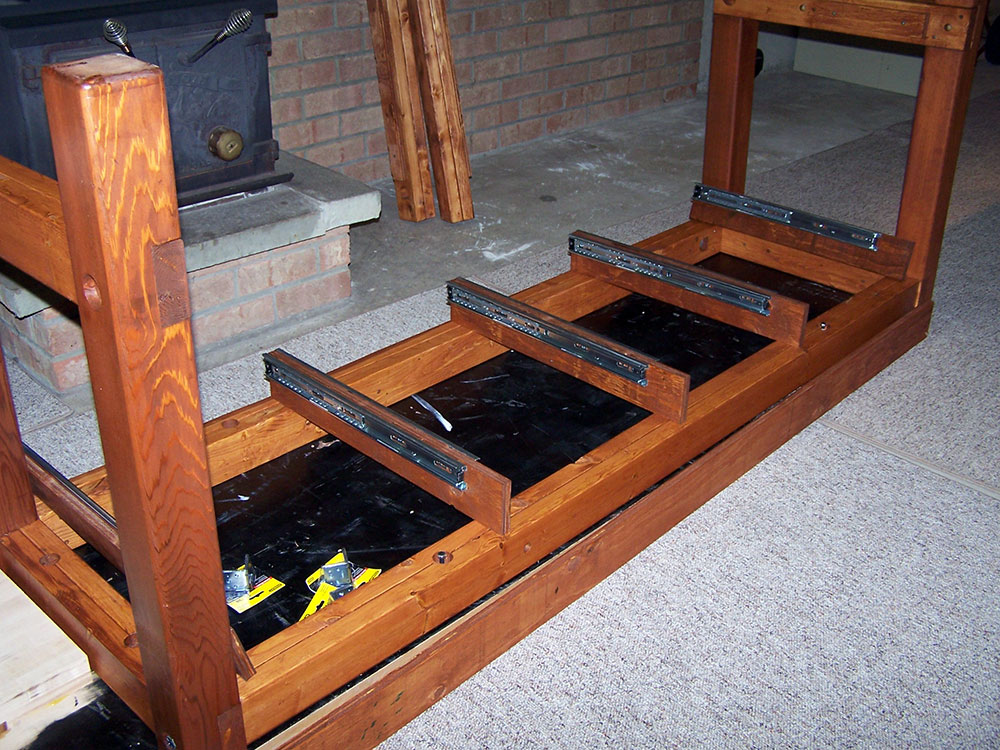

Drawer Supports

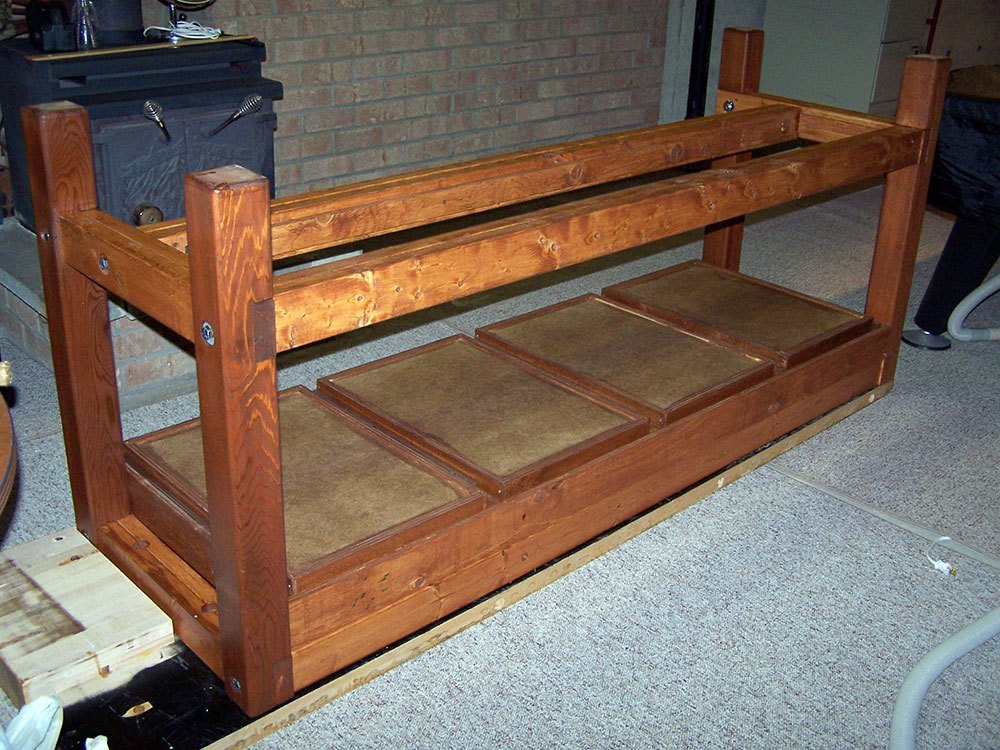

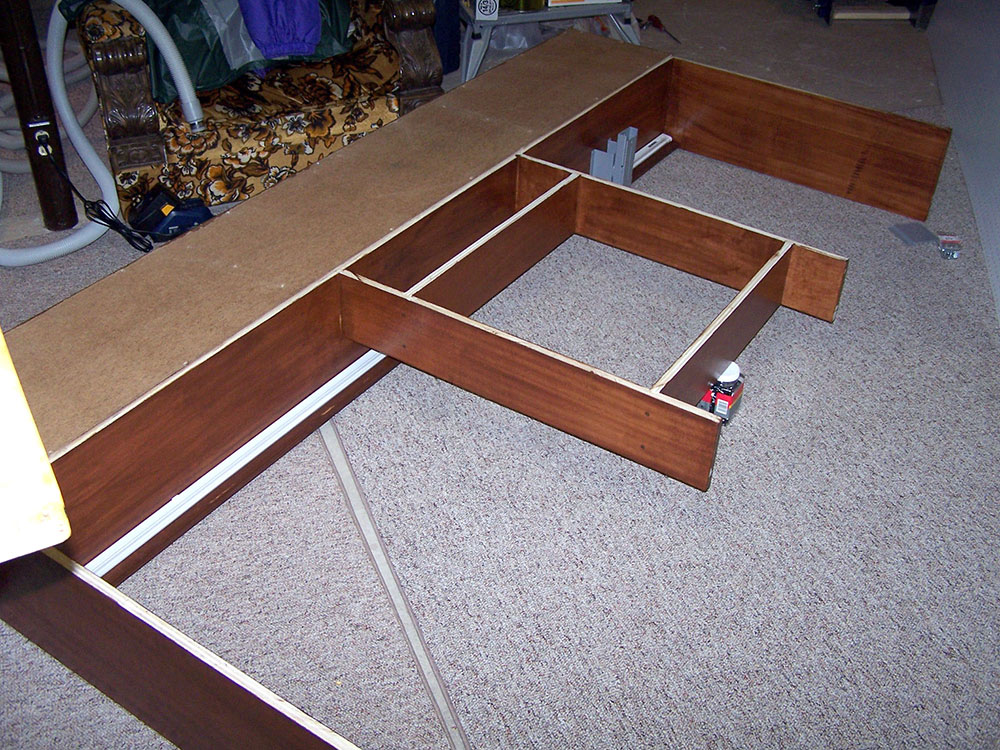

Drawers/Base

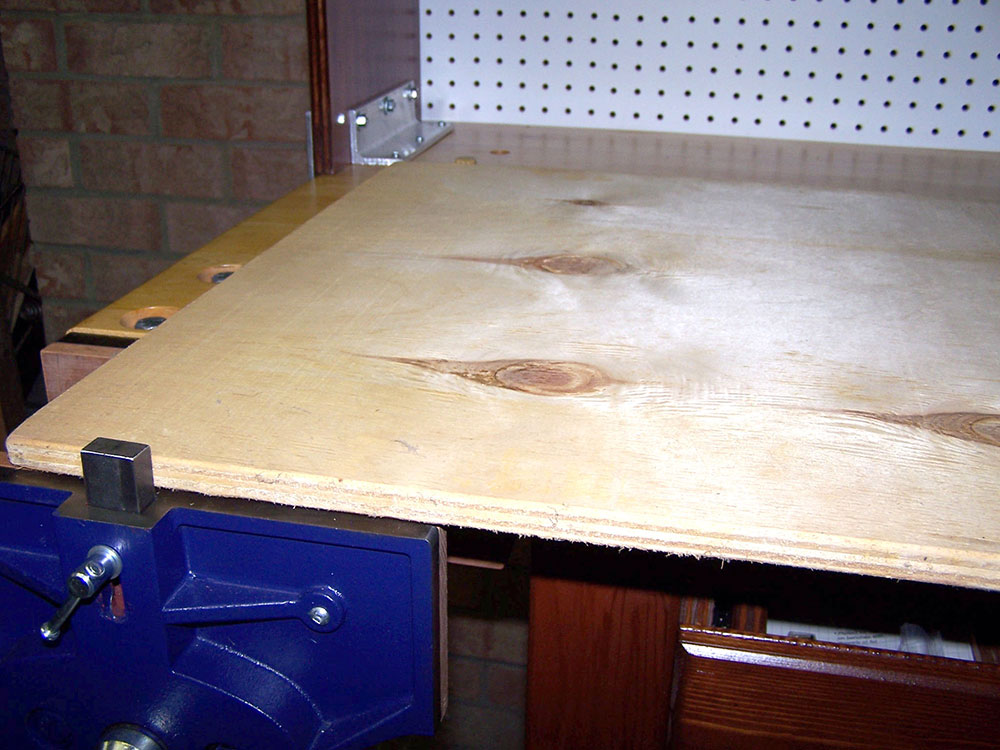

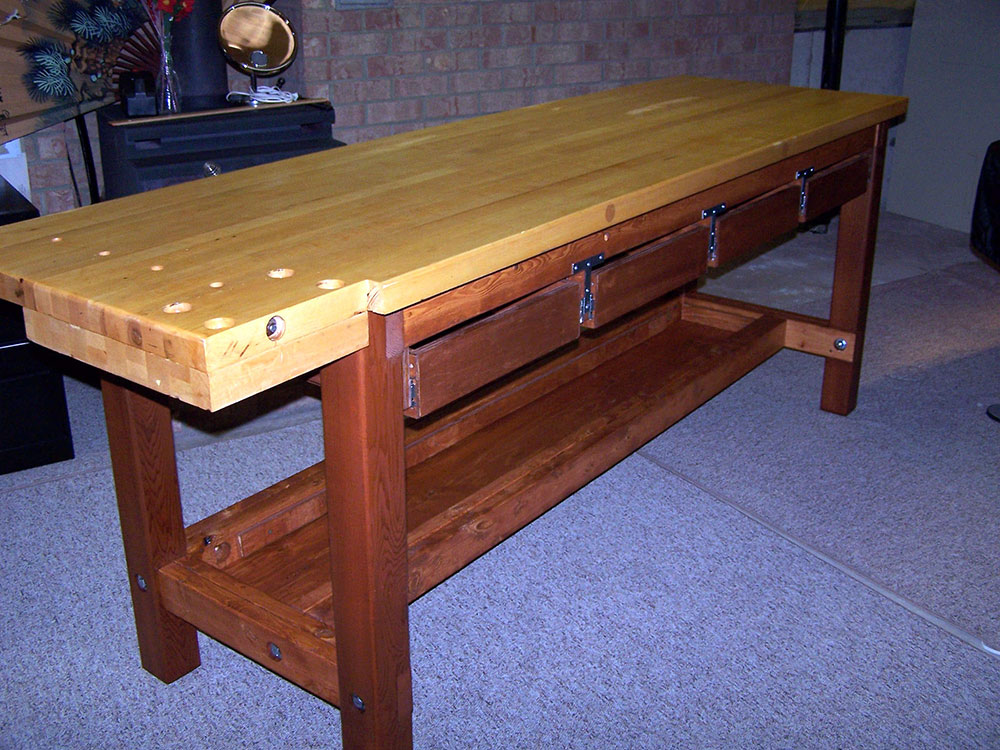

Top On

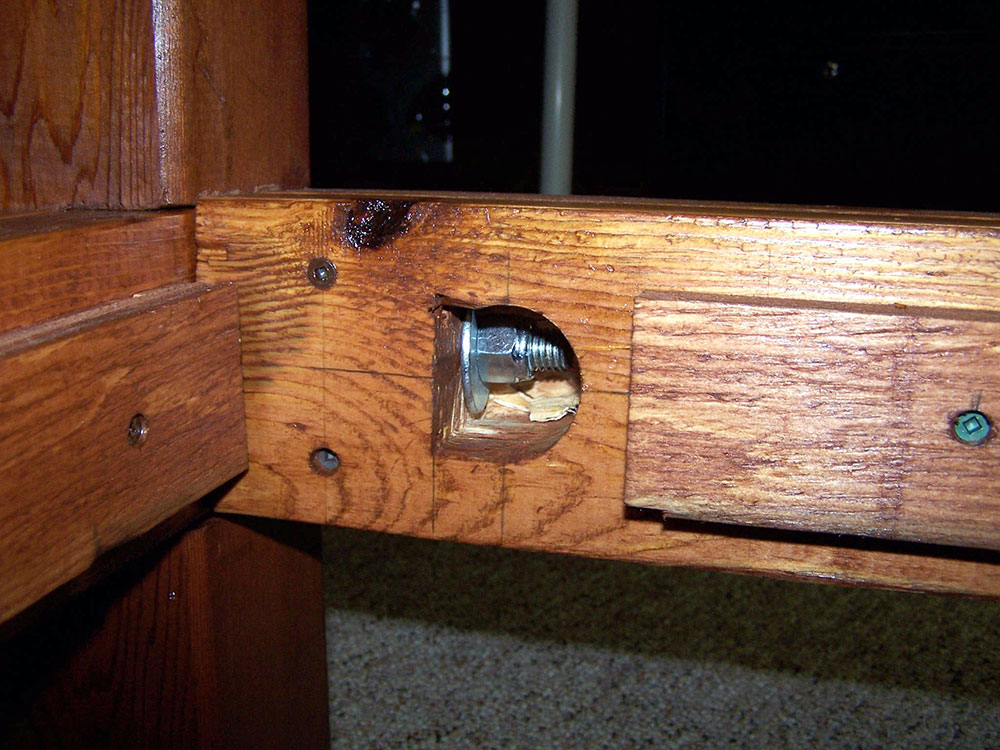

Frame Joint




Hutch Door

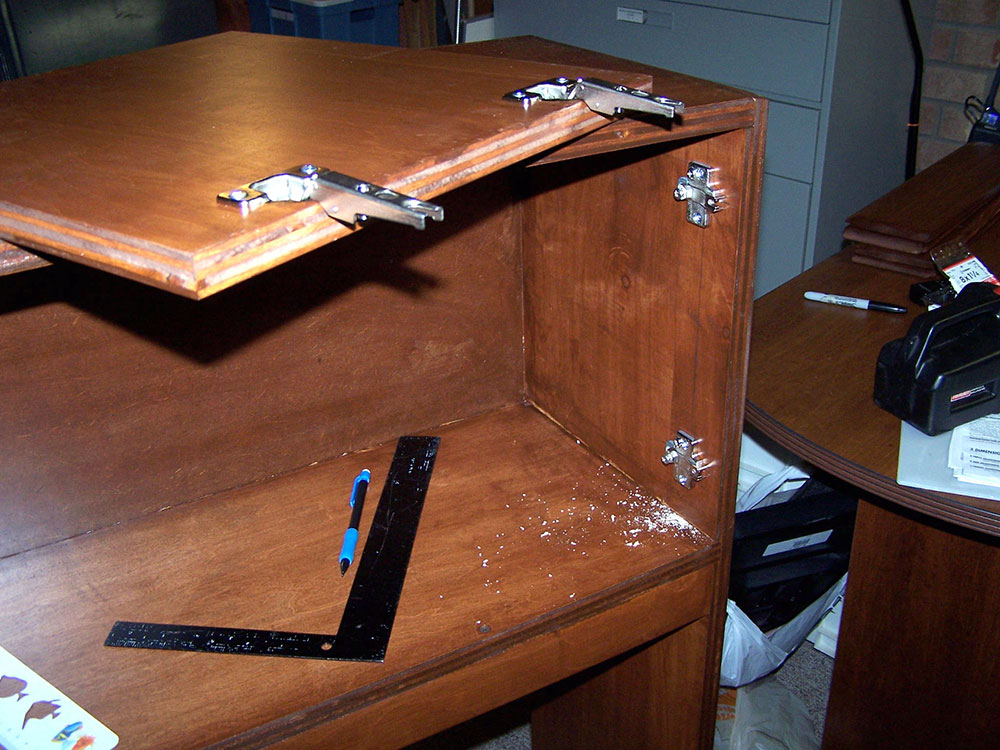

Hutch Hardware

White Backing

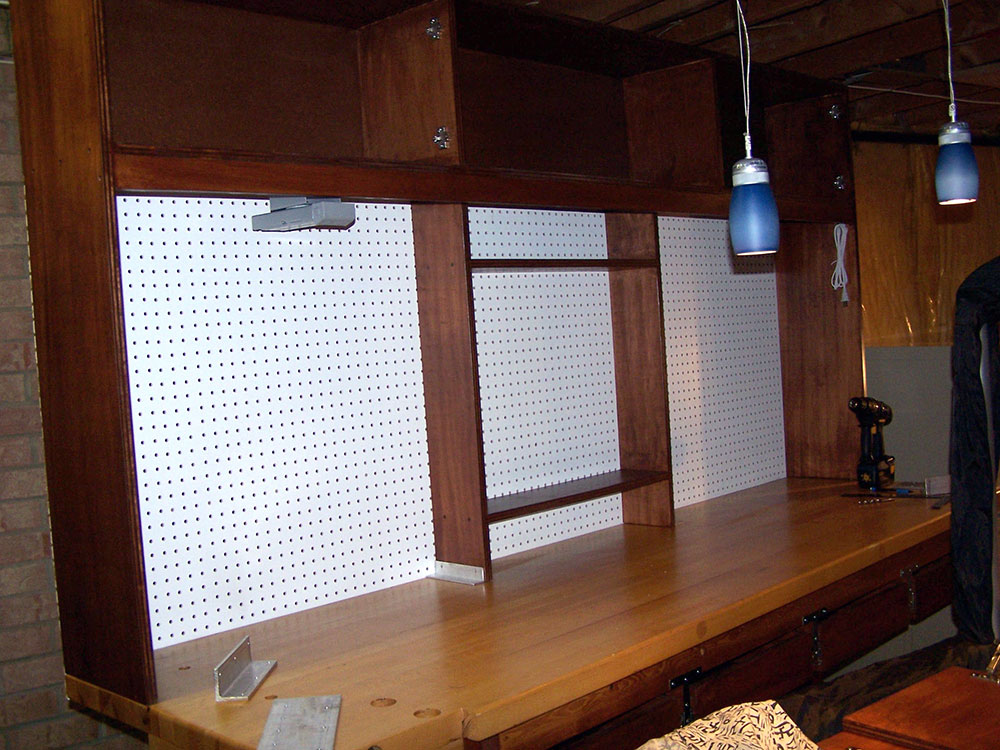

Hutch on Bench

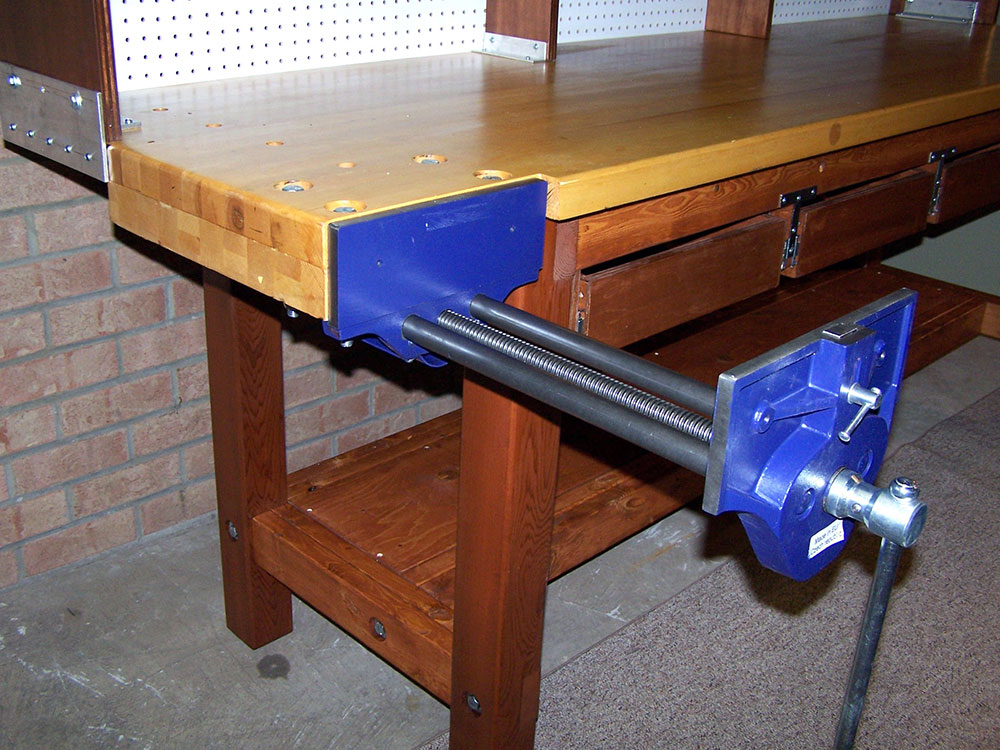

Vice Mounted

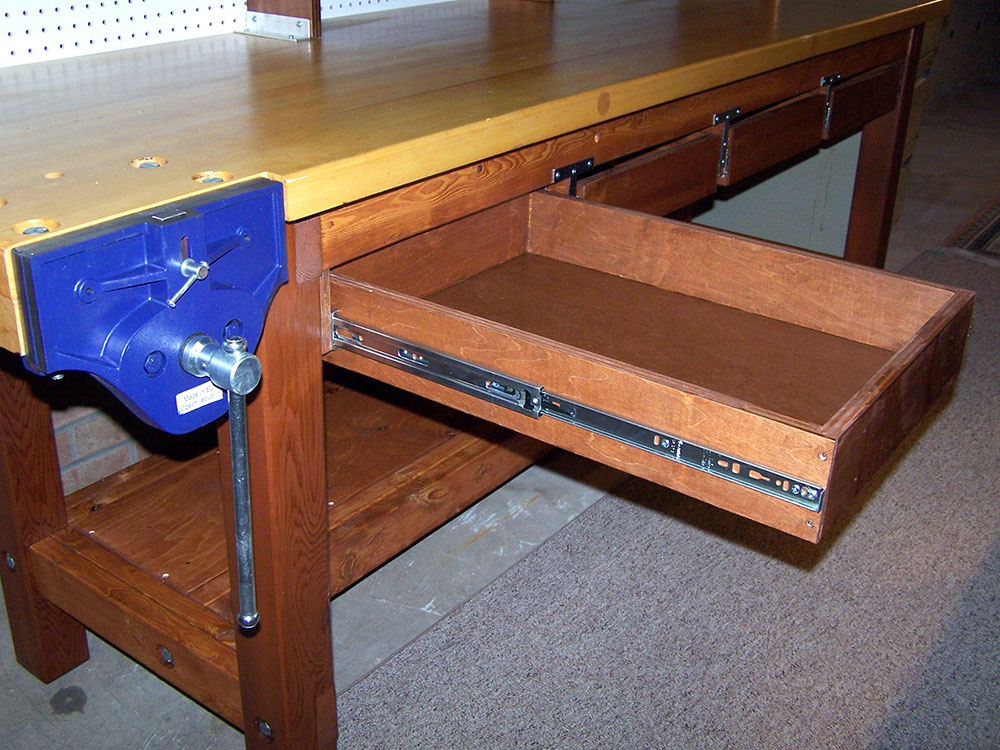

Drawer

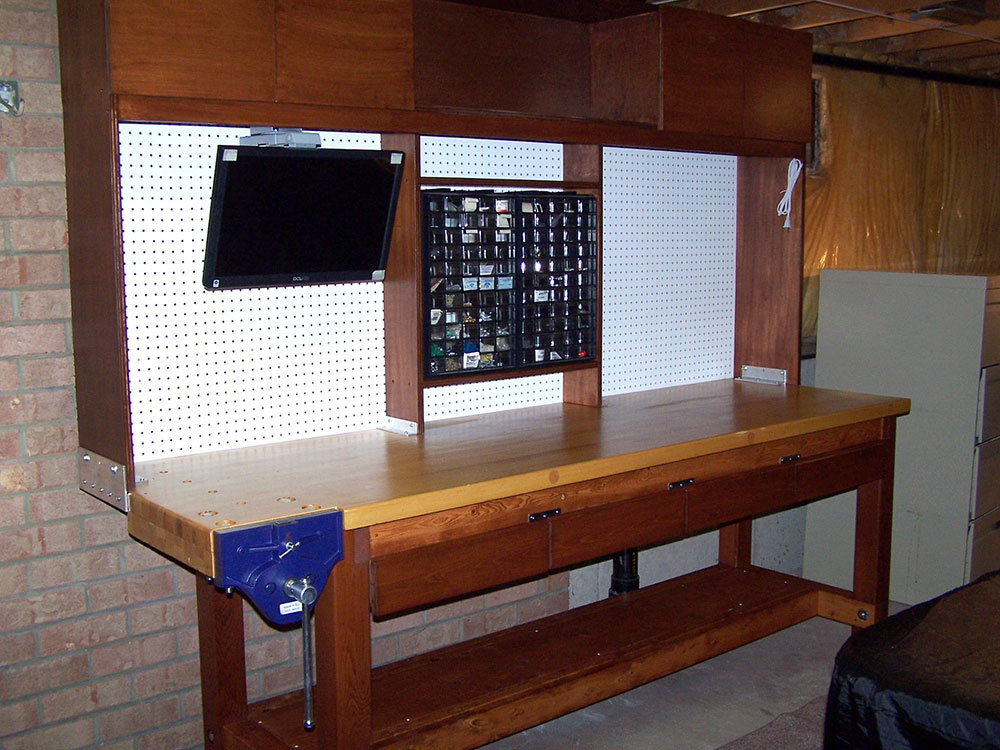

All Together

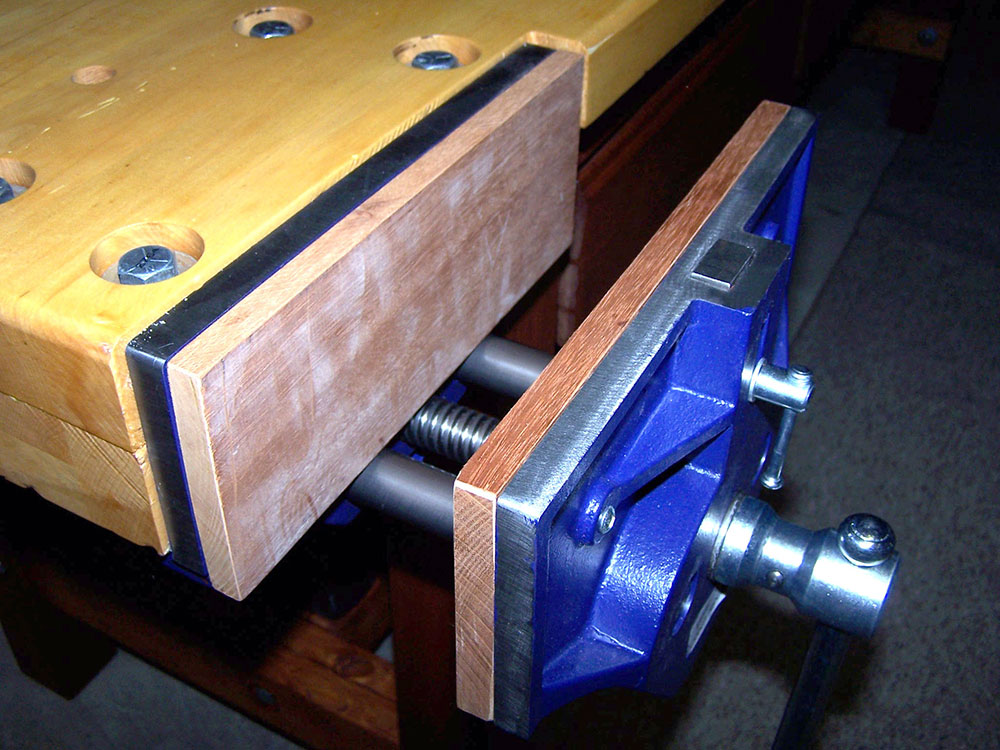

Vice Inserts

Vice Wide

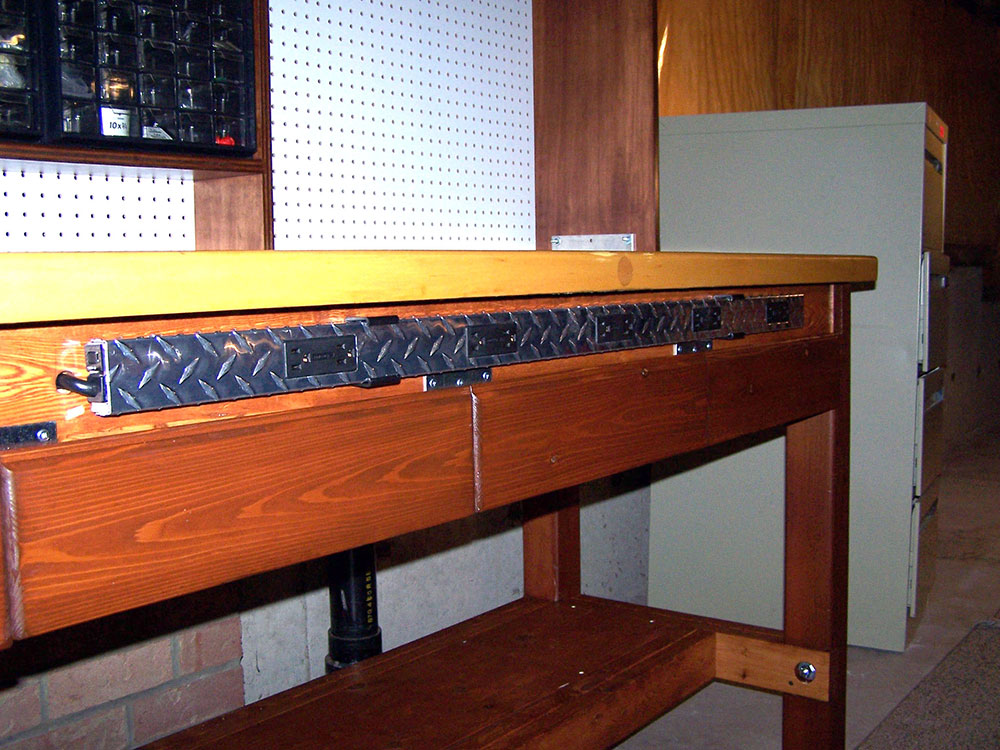

Power Bar
